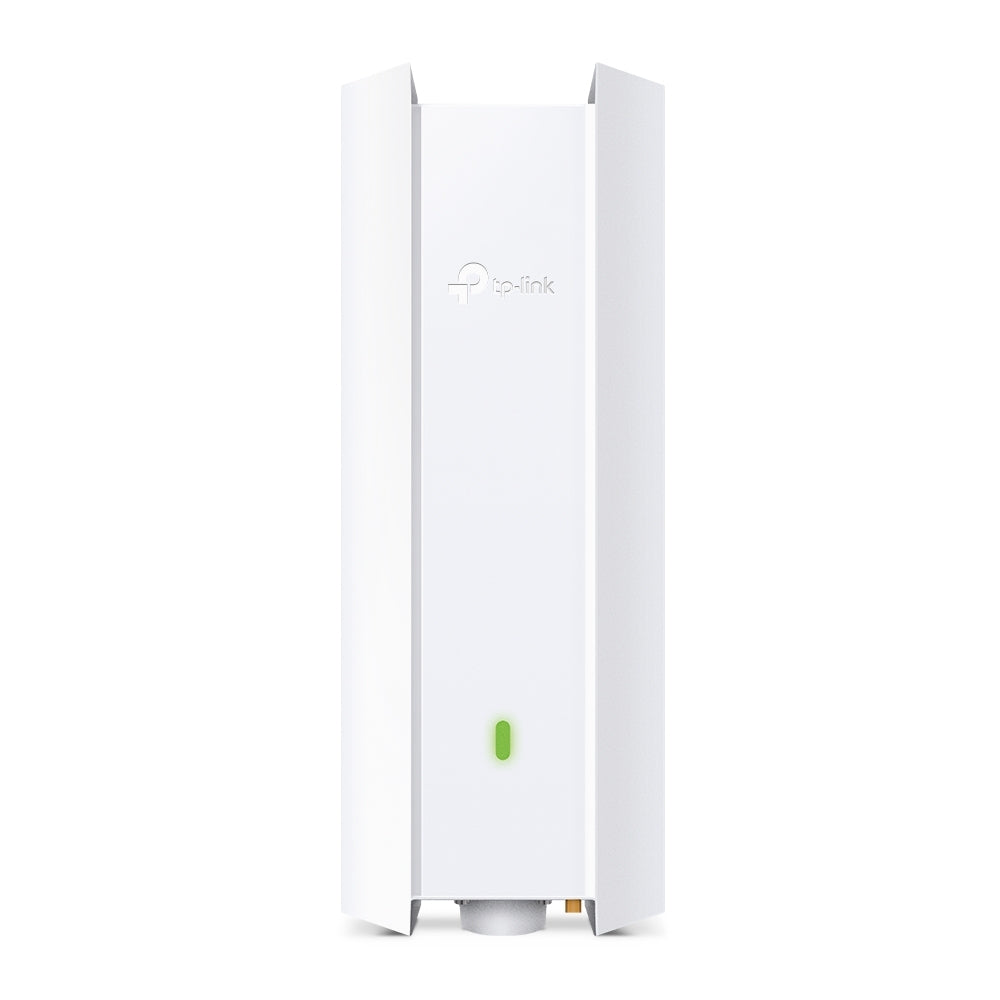

TP-Link EAP610-Outdoor AX1800 Indoor Outdoor Wi-Fi 6 Access Point (New)

AX1800 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest WiFi 6 technology†
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP67 weatherproof enclosure
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment**
• Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points**
• Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

Note: †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.

Specifications

HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Button
Reset

Power Supply
802.3at PoE
48V/0.5A Passive PoE (PoE Adapter Included)

Power Consumption
EU: 12.5W (802.3at PoE or Passive PoE)
US: 14.7W (802.3at PoE or Passive PoE)

Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

Weatherproof Enclosure
IP67

Mounting
Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz, 5 GHz

Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS is equal to 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS is equal to 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power
CE: less than 20 dBm (2.4 GHz, EIRP), less than 30 dBm(5 GHz, EIRP)
FCC: less than 25 dBm (2.4 GHz), less than 25 dBm(5 GHz)

Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh^Note
Seamless Roaming^Note
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication^Note
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT
Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c

System Logging Local/Remote Syslog
Yes

SSH
Yes

Web-based Management
Yes

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

OTHERS
Certification
CE, FCC, RoHS

Package Contents
Access Point EAP610-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Waterproof Kits
Waterproof Antenna
Installation Guide

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment
Operating Temperature: -30 - 70 ^oC (-22 - 158 ^oF)
Storage Temperature: -40 - 70 ^oC (-40 - 158 ^oF)
Operating Humidity: 10 - 90% RH non-condensing
Storage Humidity: 5 - 90% RH non-condensing

Note:
Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.

Item Dimension (L"xW"xH")
13 x 10 x 3

Weight
4.00 lb
