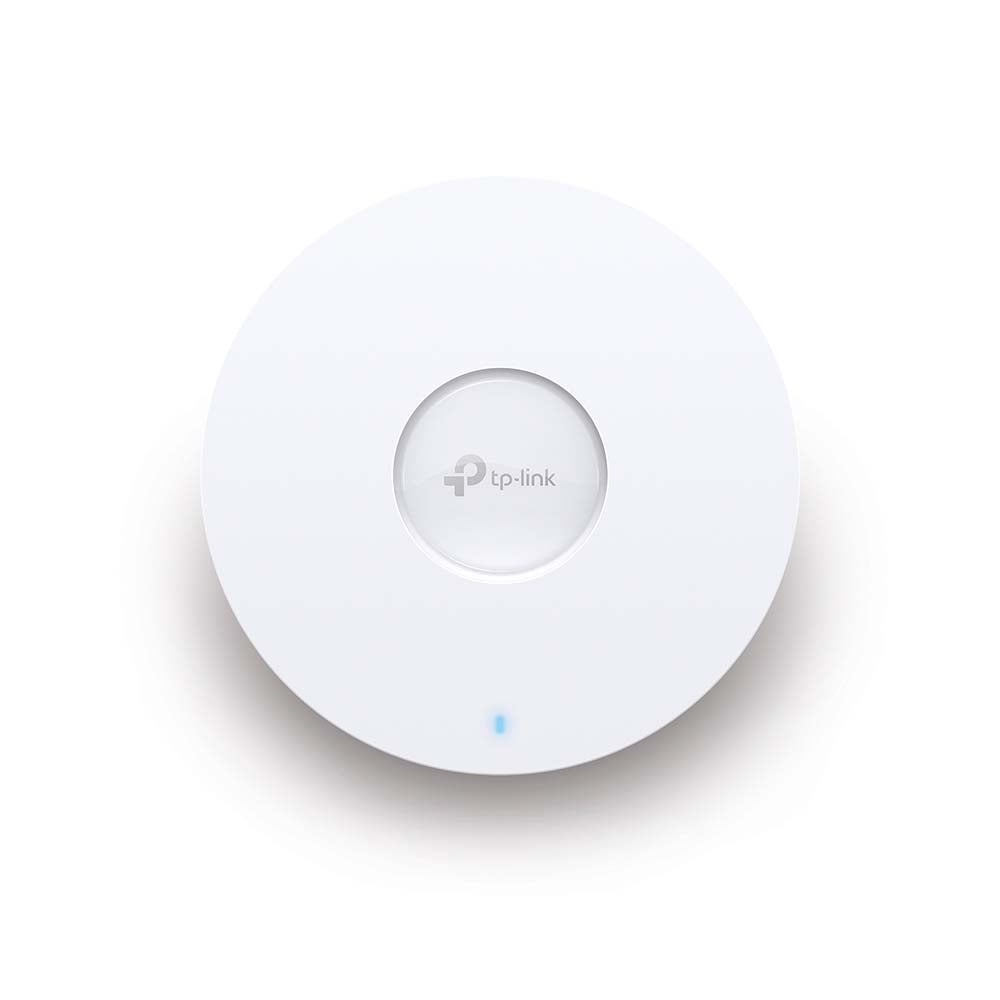

TP-Link EAP610 AX1800 Wireless Dual-Band Ceiling Mount Access Point (New)

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.^Note2
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment. ^Note2
• PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.

Note1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Note2: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Specifications

HARDWARE FEATURES
Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)

Button
Reset

Power Supply
802.3at PoE
48 V Passive PoE
12 V / 1.5 A DC

Power Consumption
EU: 13.7 W (For PoE), 12.3 W (for DC)
US: 14.2 W (For PoE), 12.8 W (for DC)

Antenna Type
Internal Omni Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps

Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power
CE:
less than 20 dBm(2.4 GHz, EIRP)
less than 23 dBm(5 GHz band1/2, EIRP), less than 25 dBm (5 GHz band3)
FCC:
less than 25 dBm (2.4 GHz)
less than 25 dBm (5 GHz)

MANAGEMENT
Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1, v2c, v3

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

OTHERS
Certification
CE, FCC, RoHS

Package Contents
EAP610
Power Adapter
Ceiling/ Wall Mounting Kits
Installation Guide

System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Environment
Operating Temperature: 0 to 40 ^oC (32 to 104 ^oF)
Storage Temperature: -40 to 70 ^oC (-40 to 158 ^oF)
Operating Humidity: 10 to 90% RH non-condensing
Storage Humidity: 5 to 90% RH non-condensing

Item Dimension (L"xW"xH")
10 x 9 x 3

Weight
2.00 lb
