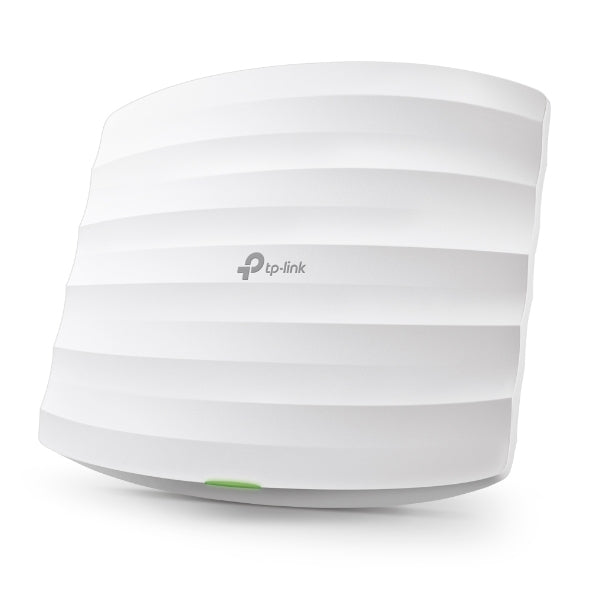

TP-Link EAP245 AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (New)

• Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
• Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
• Free cloud centralized management and Omada app for ultra convenience and easy management
• Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
• Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
• Band Steering Automatically moves dual-band devices onto the wider 5GHz band for faster connections
• Load balance ensures large numbers of users have smooth network experiences in high-density business networks
• Supports management VLAN for an enhanced network management

Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Specifications

HARDWARE FEATURES
Interface
2 x Gigabit Ethernet (RJ-45) Ports
Button
Reset
Power Supply
802.3af/at PoE or 48V Passive PoE (+4,5pins, -7,8pins. PoE Adapter Included)
Power Consumption
12.3 W
Antenna Type
Internal Omni
2.4GHz: 3 x 4dBi
5GHz: 3 x 4dBi
Mounting
Ceiling or Wall Mount
(Mounting kit included)
Physical Security Lock
Yes
Hardware Watch Dog
Yes

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ac/n/g/b/a
Frequency
2.4GHz and 5GHz
Signal Rate
5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps
Wireless Functions
Multiple SSIDsUp to 16 SSIDs, 8 for each band
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control Adjust Transmit Power on dBm
QoS(WMM)
MU-MIMO (Wave 2)
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power
FCC:
is less than or equal to 25dBm(2.4GHz)
is less than or equal to 27dBm(5GHz)

MANAGEMENT
Centralized Management
Omada Software Controller or OC200
APP support
Omada App
Cloud Access
Yes
omada.tplinkcloud.com
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
Yes
System Logging Local/Remote Syslog
Local/Remote Syslog
Telnet
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes

OTHERS
Certification
FCC, RoHS
Package Contents
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
Gigabit Passive PoE Adapter
Power Cord
Mounting Kit
Installation Guide
Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
14 x 9 x 3

Weight
3.00 LB
