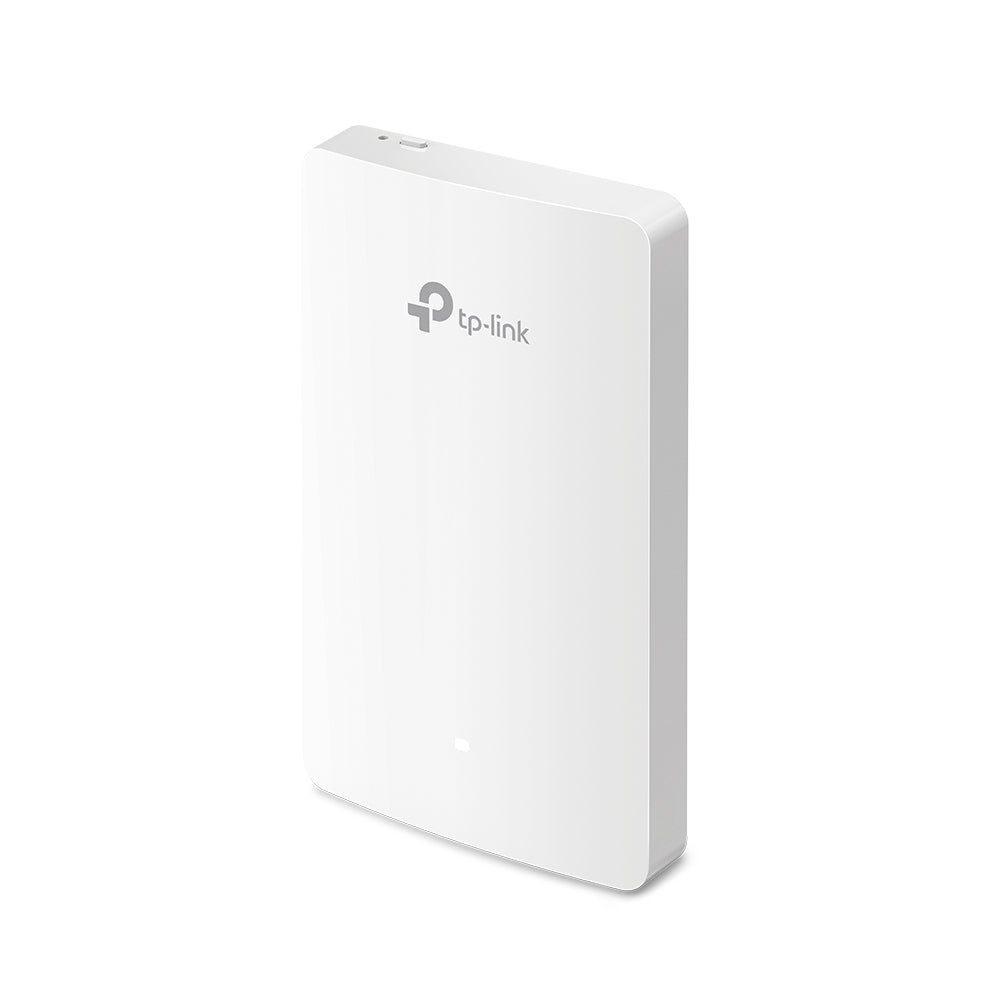

TP-Link EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point (New)

• Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
• Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.
• Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
• Centralized Management: Cloud access and Omada app for mobility and easy management.
• Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.
• Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.
• Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.
• Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Specifications

HARDWARE FEATURES
Interface
Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE
Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3af/802.3at PoE
Power Consumption
9.8 watts
24.4 watts with 13w PoE output
Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 4 dBi
Mounting
Wall Plate Mounting

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/b/g/n/ac
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/ disable SSID broadcast
Automatic channel assignment
Transmit power control (adjustable in 1 dBm step)
QoS (WMM)
Band steering
Beamforming
Load balance
Rate limit
Scheduled reboot
Wireless scheduled on/off
Wireless Statistics based on SSID, access point, or client
Wireless Security
Captive portal authentication
Access control list
Wireless MAC address filtering
Wireless isolation between clients
SSID to VLAN Mapping
LAN port-based VLAN
Rogue AP detection
802.1X EAP support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
Transmission Power
is less than or equal to 21 dBm (2.4 GHz)
is less than or equal to 21 dBm (5 GHz)

MANAGEMENT
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Local/ remote syslog
SSH
Yes
Web-based Management
HTTP/ HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes

OTHERS
Certification
FCC, RoHS
Package Contents
Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall
Installation guide
Mounting screw
Environment
Operating temperature: 0-40 ^oC (32-104 ^oF)
Storage temperature: -40-70 ^oC (-40-158 ^oF)
Operating humidity: 10-90% RH non-condensing
Storage humidity: 5-90% RH non-condensing

Item Dimension (L"x W"x H")
8 x 5 x 2

Weight
1.00 LB
