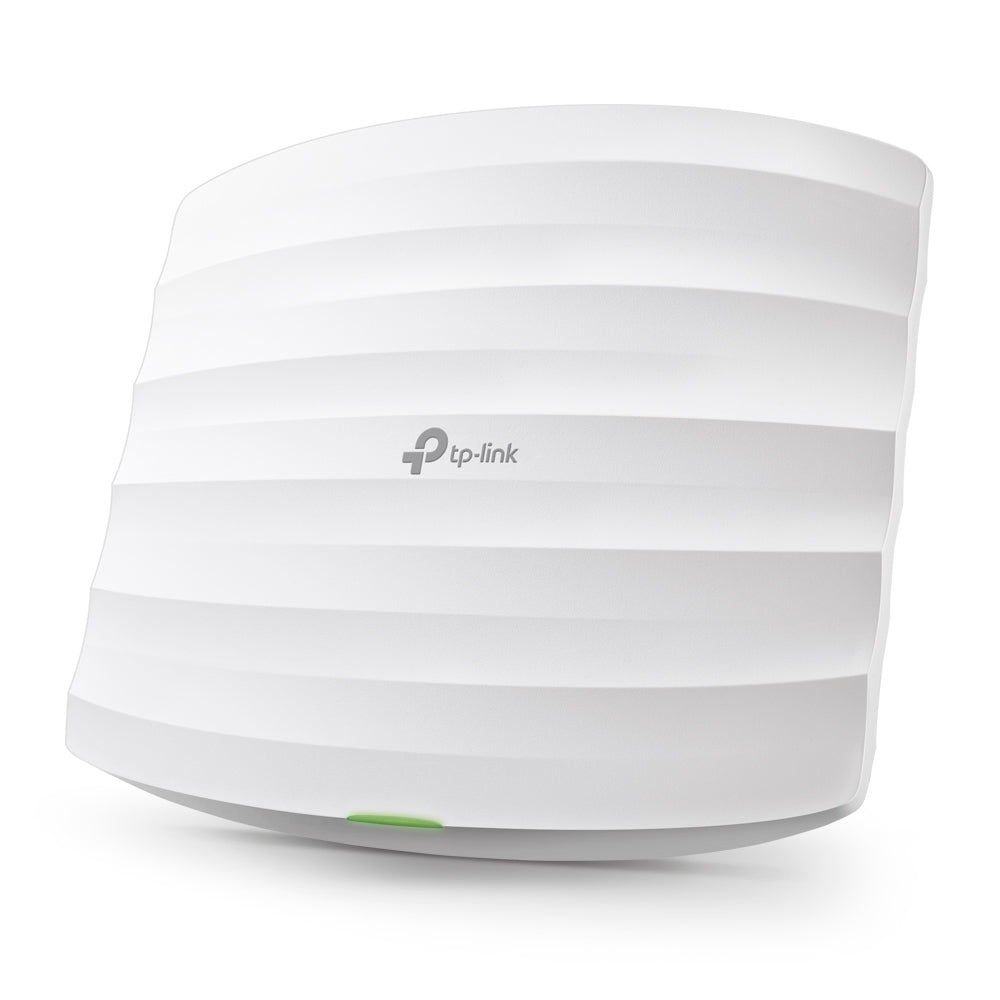

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point (New)

• Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
• Free EAP Controller Software lets administrators easily manage hundreds of EAPs
• Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
• Captive portal provides a convenient method for guest authentication
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
• Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
• Supports management VLAN for an enhanced network management
• Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Specifications

HARDWARE FEATURES

Interface
Gigabit Ethernet (RJ-45) Port x1 (Support IEEE802.3af PoE and Passive PoE)

Button
Reset

Power Supply
802.3af PoE or passive PoE

Power Consumption
12.6W

Antenna Type
3 Internal Omni
2.4GHz: 4dBi

Mounting
Ceiling /Wall Mounting (Kits included)

Physical Security Lock
Yes

Hardware Watch Dog
Yes

WIRELESS FEATURES

Wireless Standards
IEEE 802.11ac/n/g/b/a

Frequency
2.4GHz and 5GHz

Signal Rate
5GHz:Up to 867Mbps
2.4GHz:Up to 450Mbps

Wireless Functions
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Transmission Power
less than or equal to24dBm(2.4GHz)
less than or equal to22dBm(5GHz)

MANAGEMENT

EAP Controller Software
Yes

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1,v2c

System Logging Local/Remote Syslog
Local/Remote Syslog

Telnet
Yes

Web-based Management
HTTP/HTTPS

L3 Management
Yes

Multi-site Management
Yes

Management VLAN
Yes

OTHERS

Certification
CE, FCC, RoHS

Package Contents
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide

Environment
Operating Temperature: 0^oC-60^oC (32^oF-144^oF)
Storage Temperature: -40^oC-70^oC (-40^oF-158^oF)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing

Item Dimension (L"xW"xH")
14 x 3 x 9

Weight
3.00lb
