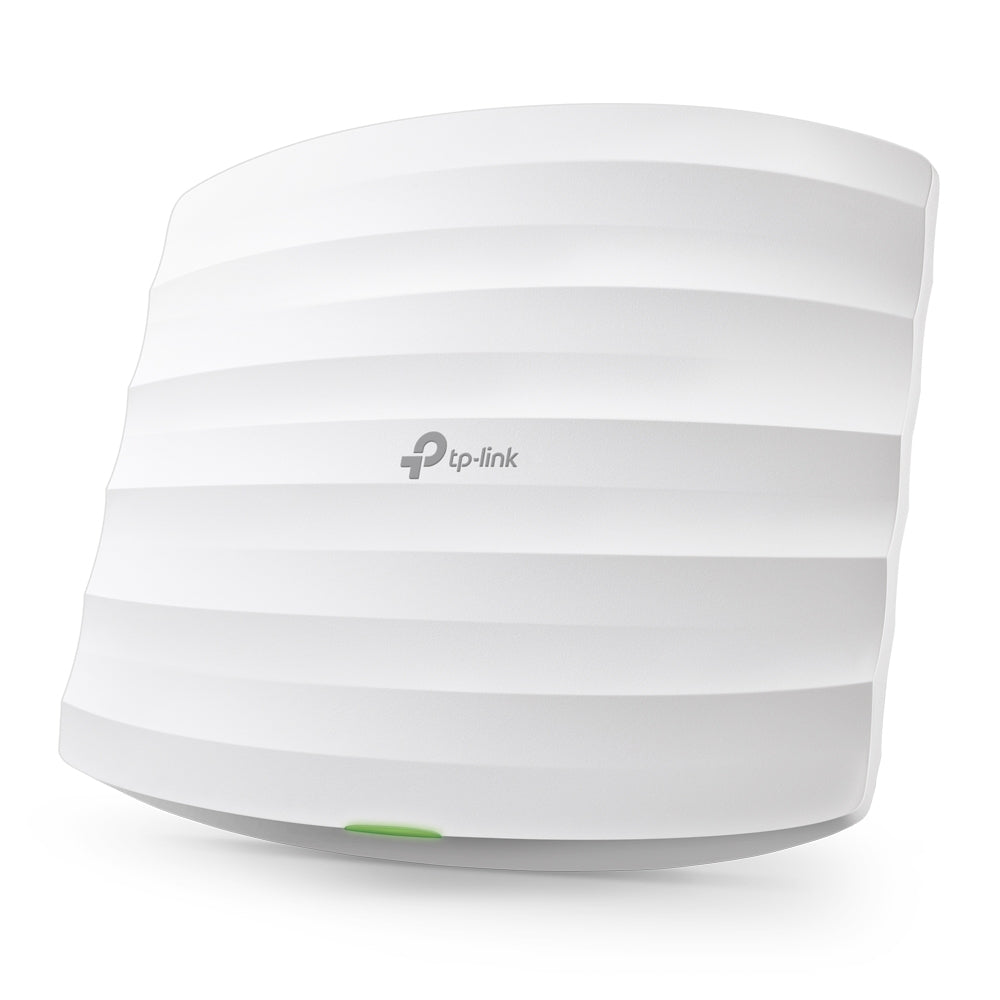

TP-Link EAP115 300Mbps Wireless N Gigabit Ceiling Mount Access Point (New)

• Free Omada Controller Software enables administrators to easily manage hundreds of EAPs
• Supports Power over Ethernet (802.3af) for convenient and affordable installation
• Simple mounting design for easy attachment to a wall or ceiling
• Captive portal provides one convenient method of authentication for Wi-Fi guests
• Facebook Wi-Fi and SMS authentication help to boost your business
• Enterprise class Wi-Fi security help to decrease network security threats
• Multi-SSID divides multiple wireless networks for different user types
• Supports management vlan for an enhanced network management

Specifications

Interface
Fast Ethernet (RJ-45) Port x1(Support IEEE802.3af PoE)

Button
Reset

Power Supply
PoE or external 9VDC/0.6A power supply

Power Consumption
2.8W

Antenna Type
Internal 2x4dBi Omni

Mounting
Ceiling /Wall Mounting (Kits included)

Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity
300M: -71dBm at 10% PER
150M: -75dBm at 10% PER
54M: -78dBm at 10% PER
11M: -93dBm at 8% PER
6M: -92dBm at 10% PER
1M: -96dBm at 8% PER

Wireless Functions
Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power
CE:
is less than or equal to 19dBm(EIRP)
FCC:
is less than or equal to 21dBm

Omada Controller Software
Yes

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1,v2c

System Logging Local/Remote Syslog
Local/Remote Syslog

Telnet
Yes

Web-based Management
HTTP/HTTPS

Management VLAN
Yes

Certification
CE, FCC, RoHS

Package Contents
300Mbps Wireless N Ceiling Mount Access Point EAP115
Power Adapter
Mounting Kits,
Installation Guide

System Requirements
Microsoft Windows 10/8/7/Vista/XP

Environment
Operating Temperature:
0 ^oC to 40 ^oC (32 ^oF to 104 ^oF)
Storage Temperature:
-40 ^oC to 70 ^oC (-40 ^oF to 158 ^oF)
Operating Humidity:
10% to 90% non-condensing
Storage Humidity:
5% to 90% non-condensing

Item Dimension (L"xW"xH")
11 x 3 x 10

Weight
3.00lb
