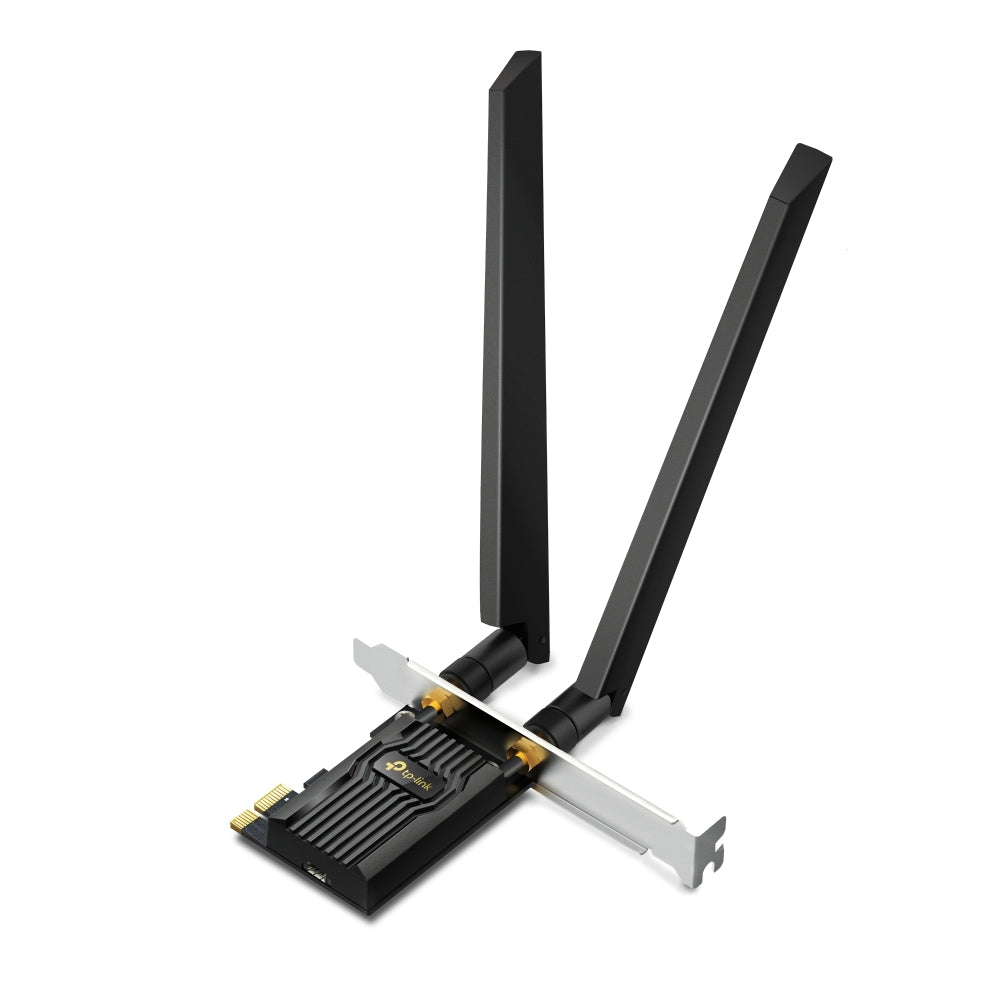

TP-Link Archer TXE72E AXE5400 Tri-Band Wi-Fi 6E Bluetooth PCI Express Adapter (New)

AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

• Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11.
• Reliable Connections — The latest Intel® Wi-Fi 6E chipset’s reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential
• Wider Signal Coverage — Two multi-directional antennas are designed for optimal signal reception
• Bluetooth 5.3 — The latest Bluetooth technology achieves faster speeds and broader coverage
• Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
• Reliably Engineered — The specialized heatsink and gold plating improve stability and performance even at high CPU temps
• Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards

Specifications

HARDWARE FEATURES
Antenna Type
2x High-Gain Tri-Band Antennas

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/b/g/n/ac/ax

WLAN Signal Rate
6 GHz:
11ax: Up tp 2402Mbps
5 GHz:
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity
6 GHz:
11ax HE160 MCS0:-86
11ax HE160 MCS11:-56
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm

WLAN Transmit Power
5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)

WLAN Modes
Infrastructure mode

Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

OTHERS
Certification
FCC, CE, RoHS

Package Contents
Archer TXE72E
2x High-Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD

Currently 6 GHz Band only supported on Windows 11.

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
8 x 6 x 2

Weight
1.00 lb
