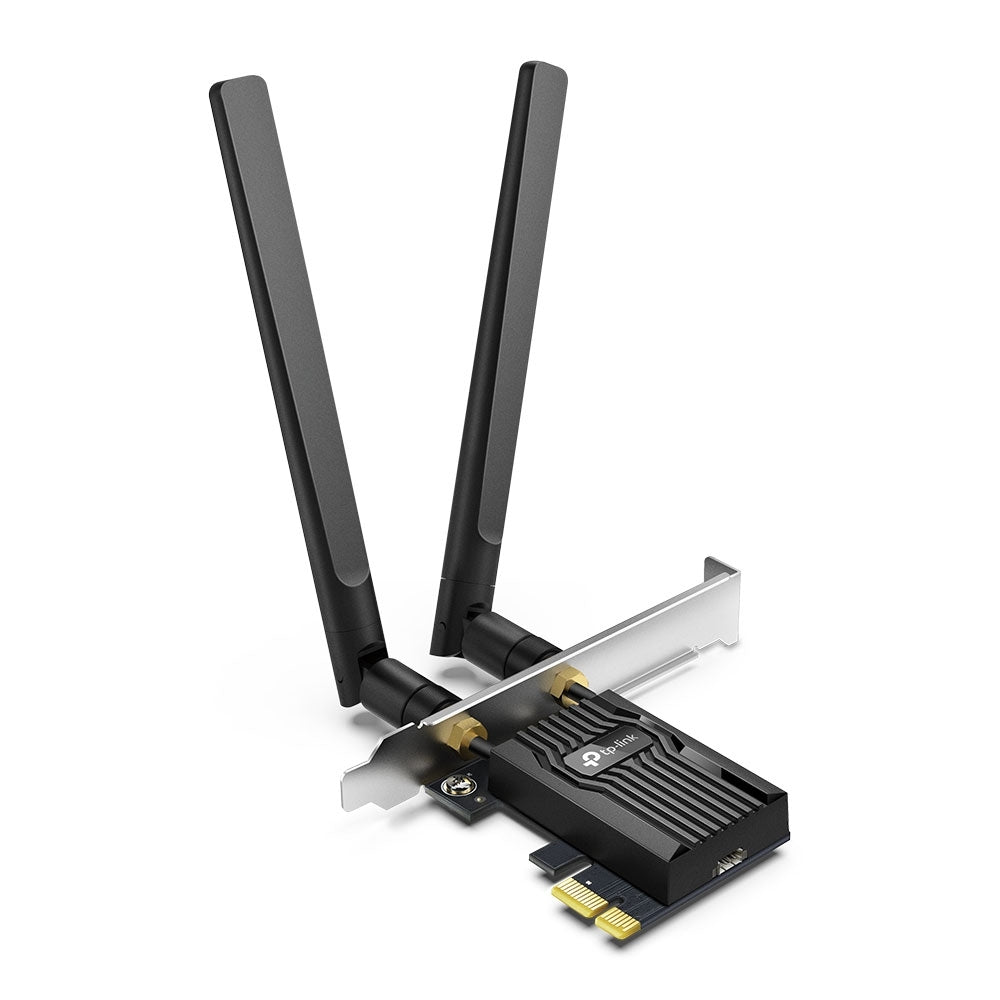

TP-Link Archer TX55E AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter (New)

AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

• Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Smoother Experience—75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming
• Reliable Connections—Intel® Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
• Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
• Bluetooth 5.2—The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version
• Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
• Fine Crafting—Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
• Backward Compatibility – Full support for 802.11ac/a/b/g/n standards

Ultra-Fast Wi-Fi Experience
The very latest Wi-Fi standard, Wi-Fi 6, provides extreme speed, ultra-low latency, and uninterrupted connectivity so you enjoy faster downloads, smoother streaming, and more immersive gaming.†
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and the number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.

Specifications

HARDWARE FEATURES
Antenna Type
Two High-Gain Dual Band Antennas

Chipset
Intel Wi-Fi 6 Chipset

BLUETOOTH FEATURES
Standards and Protocols
Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0

Interface
F_USB 2.0

WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2/5.0/4.2/4.0

WLAN Signal Rate
5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity
5 GHz :
11ax HT160-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm
11ac HT160-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm
2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

WLAN Transmit Power
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)

WLAN Modes
Infrastructure mode

Wireless Security
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

OTHERS
Certification
CE, FCC, RoHS

Package Contents
Archer TX55E
Two High-Gain Antennas
Low-Profile Bracket
Standard Bluetooth Header Cable
Quick Installation Guide
Resource CD

System Requirements
Windows 10(64-bit) only

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Storage Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
8 x 6 x 2

Weight
1.00 lb
