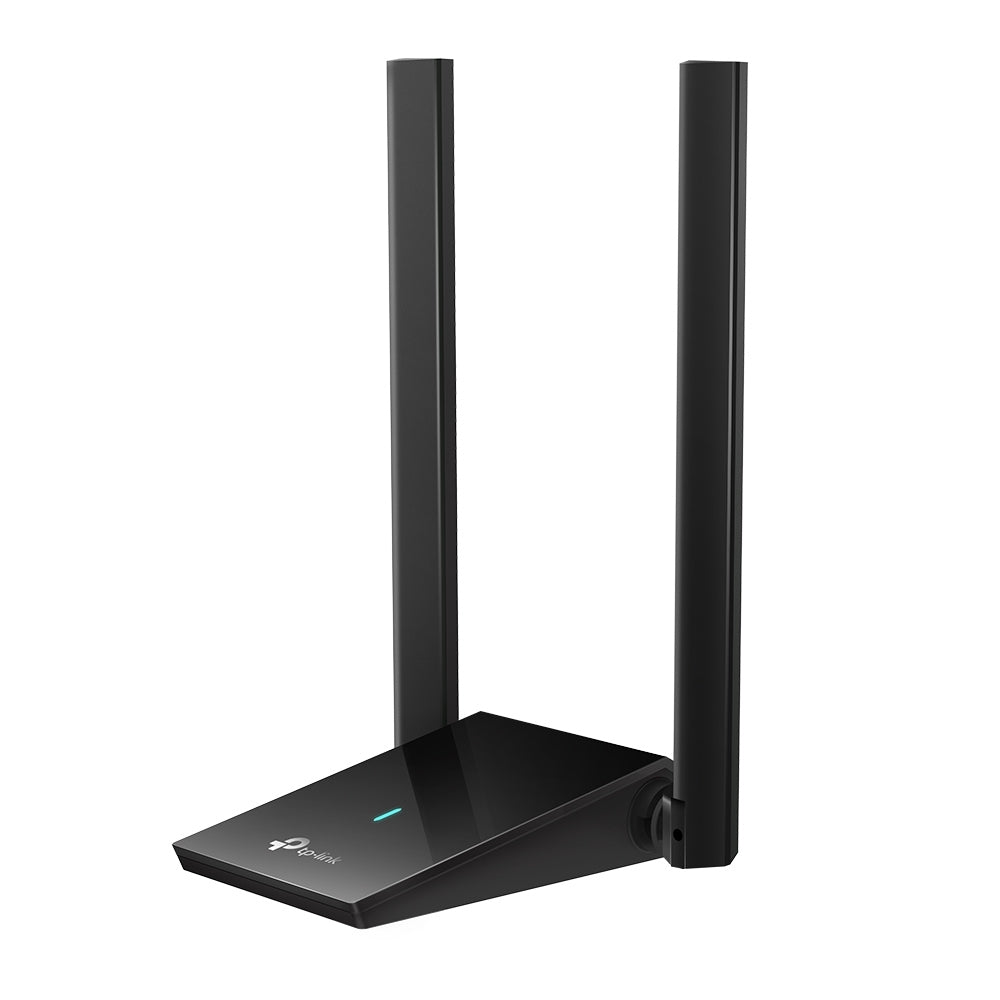

TP-Link Archer TX20U Plus AX1800 High Gain Dual-Band Wi-Fi 6 USB Adapter (New)

AX1800 Dual Antennas High Gain Wireless USB Adapter

• Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)¹
• Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
• Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
• MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth²
• OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks²
• SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
• Refined Security – Protect your personal data with the latest WPA3 encryption

Note:
1. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.
2. Use of Wi-Fi 6 and other features, including OFDMA and MU-MIMO, require your APs to also support the corresponding features.

Specifications

HARDWARE FEATURES
LED
Status

Antenna
2x High-Gain Dual-Band Antennas

WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/b/g/n/ac/ax

Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm

Transmit Power
5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)

Wireless Modes
Infrastructure mode

Wireless Security
WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

OTHERS
Certification
FCC, CE, RoHS

Package Contents
AX1800 Dual Antennas High Gain Wireless USB Adapter
Archer TX20U Plus
Quick Installation Guide
1-meter USB 3.0 Cable

System Requirements
Supported operating systems include Windows 10, 11

Environment
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing

Item Dimension (L"xW"xH")
8 x 7 x 2

Weight
1.00 lb
