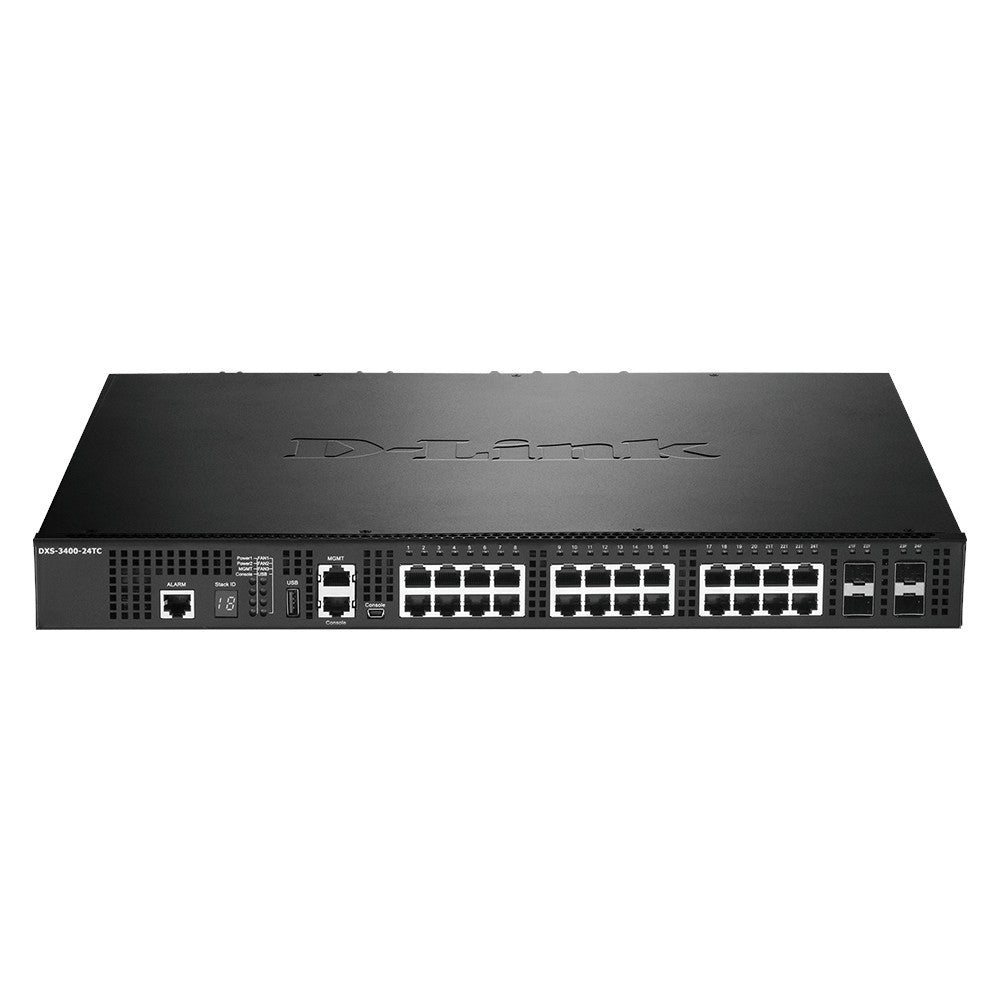

D-Link DXS-3400-24TC 24-Port Layer 3 Stackable 10-Gigabit Managed Switch (New)

D-Link’s DXS-3400 Series Lite Layer 3 Stackable 10 GbE Managed Switches are compact, high-performance switches that feature wire speed 10-Gigabit Ethernet switching, routing, and ultra-low latency. The 1U height and high port density make the DXS-3400 Series suitable for enterprise and campus environments where space is at a premium. 10GbE Copper and Fiber versions are available. The DXS-3400-24TC includes twenty (20) 10GBASE-T (RJ45) ports and four (4) 10GbE "Combo" ports (RJ45/SFP+). The DXS-3400-24SC includes twenty (20) 10GbE optical (SFP+) ports and four (4) 10GbE "Combo" ports (RJ45/SFP+).

High Availability and Flexibility
The DXS-3400 Series switches feature modular fans and power supplies for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. Physical and virtual switch stacking allows the switches to be managed from a single IP address and provides redundancy for connected devices. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the application. The DXS-3400 Series switches support 3 modes – IP Mode, LAN Mode and L2 VPN Mode – which modify the size of the Layer 2 and 3 tables for optimum efficiency.

Specifications

Interfaces
10GBASE-T (RJ45) ports: 20
10GbE Combo Ports (RJ45/SFP+) : 4
Console Port : RJ45 and Mini USB console ports for out-of-band CLI management
Management Port : 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management
Alarm Port : RJ45
USB Port : USB 2.0 Type A

Performance
Switch Capacity : 480 Gbps
Max. Forwarding Rate : 357.12 Mpps
Packet Buffer Memory : 4 MBytes
MAC Address Table : Up to 48K entries

MTBF
TBD

Heat Dissipation
557.94 BTU/hr

Power Input
100 to 240 VAC, 50/60 Hz, 2A

Max Power Consumption
159.8 W

Standby Power Consumption
85.1 W

Operating Temperature
23^oF to 122^oF (-5^oC to 50^oC)

Storage Temperature
-40^oF to 158^oF (-40^oC to 70^oC)

Operating Humidity
10% to 95% RH

Storage Humidity
5% to 95% RH

Safety
cUL, CB, CE, CCC, BSMI

EMI/EMC
CE, FCC Class A, C-Tick, VCCI, BSMI, CCC

Item Dimension (L"xW"xH")
18 x 15 x 2

Weight
14.33 lb
