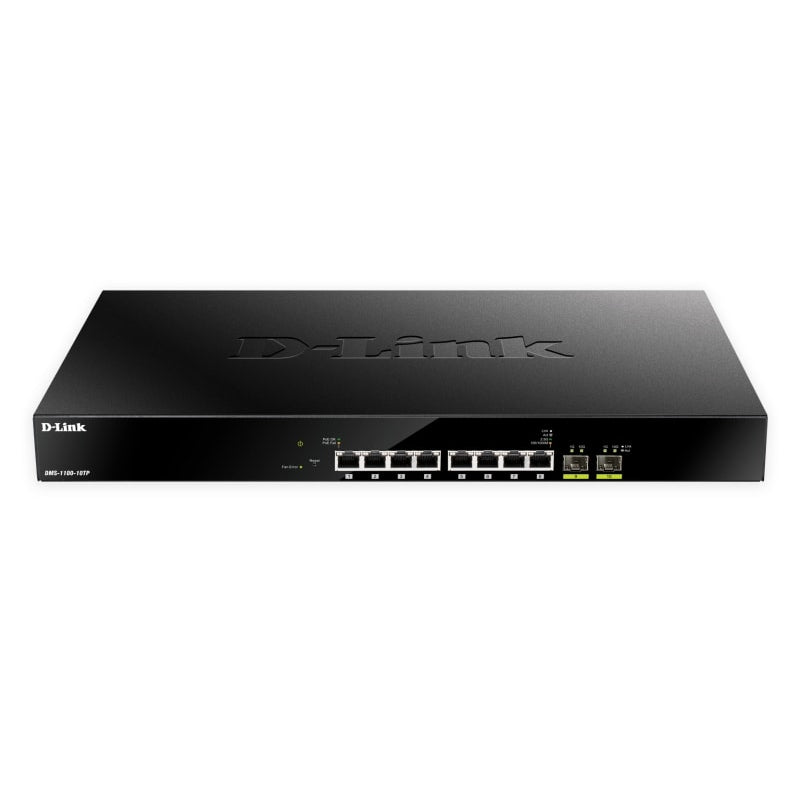

D-Link DMS-1100-10TP 8-Port Multi-Gigabit Ethernet Smart Managed PoE Switch with 2 10GbE SFP+ Ports (New)

The D-Link DMS-1100 Series 2.5 Gigabit Ethernet Smart Managed Switches are a cost-effective 2.5 Gigabit switch series capable of servicing a range of network needs in any type of business. Featuring eight 2.5 Gigabit access ports and two 10 Gigabit SFP+ uplink ports, these switches are ideal for deploying high-performance 802.11ac Wave 2 access points using 2.5 Gigabit connections, while providing 10 Gigabit wire-speed uplinks for optimal bandwidth when accessing the larger local area network.

Seamless Integration and Future Proof
The DMS-1100 switches support IEEE 802.3bz and are fully backwards compatible with 802.3ab Gigabit Ethernet to deliver 2.5 Gigabit speed over commonly deployed Cat 5e cables over distances up to 100 meters.
Driven by the increasing popularity of 802.11ac Wave 2 access points and the emerging trend of 2.5 Gigabit LAN connections, 2.5 Gigabit technology will ultimately replace Gigabit as the standard for Ethernet connectivity. With backwards compatibility for older standards, the DMS-1100 Series can be flawlessly integrated into existing Gigabit Ethernet network infrastructures while simultaneously making networks future-proof for the next generation of 2.5 Gigabit connectivity.

Specifications

General
Hardware version : Rev A
Number of Ports: 8 x 100/1000/2.5GBASE-T (RJ45)
2 x 10GbE (SFP+)
Port Standards and Functions : IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-X
IEEE 802.3bz 2.5GBASE-T
IEEE 802.3ae 10G over fiber
IEEE 802.3az
IEEE 802.3af/at (DMS-1100-10TP only)
Network Cables for 2.5GBASE-T: Cat 5e (100 m max)
Media Interface Exchange : Auto MDI/MDIX adjustment for all twisted-pair ports

Performance
Switching Capacity : 80 Gbps
Maximum Packet Forwarding Rate : 59.52 Mpps
Transmission Method : Store-and-forward
MAC Address Table : Up to 16,000 entries per device

PoE (DMS-1100-10TP only)
PoE Standards: IEEE 802.3af/at
Ports: Ports 1 to 8
PoE Budget: 240 W

Physical and Environmental
AC Input : 100 to 240 VAC
Maximum Power Consumption : DMS-1100-10TP: 293.4 W (PoE on) 38.1 W (PoE off)
Standby Power Consumption: DMS-1100-10TP: 27.3 W
Operating Temperature : 23^oF to 122^oF (-5^oC to 50^oC)
Storage Temperature : -40^oF to 158^oF (-40^oC to 70^oC)
Operatng Humidity : 0% to 95% non-condensing
Storage Humidity : 0% to 95% non-condensing
Dimensions : DMS-1100-10TP: 17.32 x 9.84 x 1.73 in. (440 x 250 x 44 mm)
19 standard rack mounting width 1U
Weight: DMS-1100-10TP: 7.56 lbs (3.43 kg)
Ventilation: 1 Smart fan
MTBF : 378,023 hours
676,329 hours
Diagnostic LEDs : Link/Activity/Speed (Per 2.5GBASE-T port)
Link/Activity/Speed (Per 10G SFP+ port)
POWER
FAN error
PoE status (DMS-1100-10TP only)
Certifications : CE, FCC, C-Tick, VCCI, BSMI, CCC
Safety: cUL, CB, CE, CCC, BSMI

Item Dimension (L"xW"xH")
22 x 15 x 4

Weight
10.20lb
