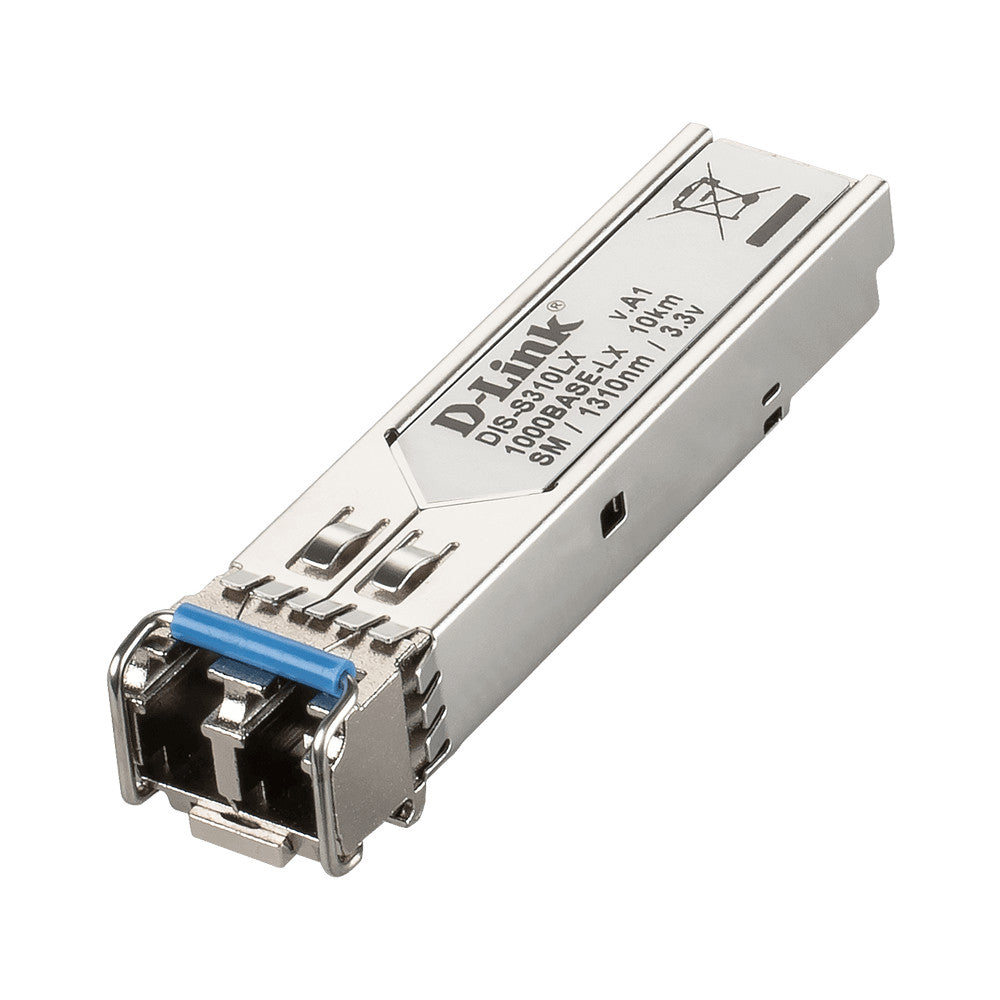

D-Link DIS-S310LX 1-Port Mini GBIC SFP to 1000BaseLX Single Mode 10KM Fiber Transceiver (New)

1-Port Mini-GBIC SFP to 1000BaseLX Single-Mode Fibre Transceiver

• Up to 10 km
• -40 to 85^oC operating temperature

Specifications

Features
Hot Pluggable
MSA Compliant
RoHS Compliant

Standard
Compliant Standard:IEEE802.3z
1000BASE-LX
Transceiver Type:SFP
Fiber Channel FC-PI standard:100-SM-LC-L
Fiber Media support:Single-Mode
Distance:10km

Speed
1.25Gbps

Interface
Connector:Duplex LC Connector
Single/bi Direction:Single-direction
Wavelength:1310nm
Output Optical Power (TX Optical Power):MAX.: -3dBm
MIN.: -8 dBm
Input Optical Power (RX Optical Power):MAX.: - 3 dBm
MIN.: - 24 dBm
Sensitivity:-24dBm
Cable Type:Single-mode 9/125um fibre

Operating
Power:3.3V
Max Input Current:300mA
Power Budget (MIN Power Budget):16dB
MAX Power Budget:21dB
Heat Generated:2.376 kJ/h
MTBF (hours):223,857 hours

Physical and Environment
Operation Temperature:-40 to 85^oC
Storage Temperature:-40 to 85 ^oC
Humidity (Operating):5% to 95%
Humidity (Storage):5% to 95%
Bail latch colour:Blue

Emission (EMI) and Safety Certifications
EMI:CE
FCC
VCCI
Safety:LVD
EN 60825-1
EN 60825-2

Item Dimension (L"xW"xH")
6 x 3 x 2

Weight
1.00lb
