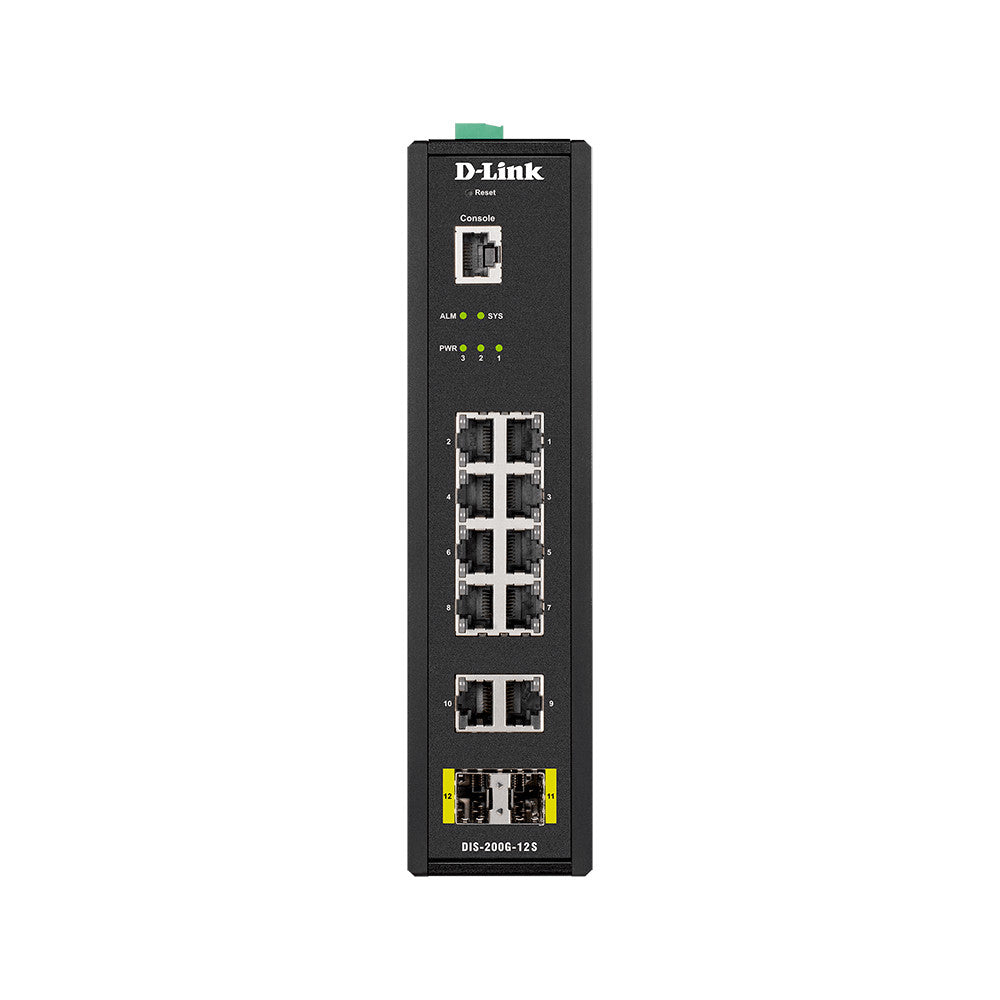

D-Link DIS-200G-12S 12-Port Gigabit Smart Managed Industrial Switch (New)

The DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches are equipped with 8 PoE-capable 10/100/1000BASE-T ports (PoE models), 2 10/100/1000BASE-T ports, and 2 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G Series furthermore integrates advanced management and security functions to provide a complete solution.

Flexible Availability

• Available in PoE and non-PoE models
• Industrial model variations with wider operating temperature ranges

Robust and High-Redundancy Design

• Fanless, passive cooling design
• High EMC endurance
• 6 kV surge protection on copper ports
• Ethernet Ring Protection Switching (ERPS)
• Dual power input for redundant power supplies

Specifications

Hardware Version
A1

Number of Ports
10 x 10/100/1000BASE-T PoE ports
2 x SFP ports
1 x RJ-45 Console port

Port Functions
IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet
IEEE 802.3ab for Gigabit Ethernet
IEEE 802.3z for Gigabit fiber
IEEE 802.3af/at Power over Ethernet (DIS-200G-12PS/DIS-200G-12PSW)
IEEE 802.3az-compliant

Media Interface Exchange
Auto-MDI/MDIX adjustment for all twisted pair ports

Performance
Switching Capacity: 24 Gbps
Maximum Forwarding Rate: 17.85 Mpps
MAC Address Table Size: Up to 8K entries
Transmission Method: Store-and-forward

PoE
PoE Standard: N/A
PoE Capable Ports: N/A
PoE Power Budget: N/A

Diagnostic LEDs
SYS
ALM
PWR1/2/3
Link/Activity/Speed

Power Input
12 to 48 V DC terminal block dual input
12 V DC 4-pin DIN single power input

Power Consumptions
Maximum: pending
Standby: pending

Alarm Relay
1 A at 24 V

Ventilation
Fanless

Environmental
Operating Temperature: -40 to 65^oC (-40 to 149^oF)

Storage Temperature
-40-85^oC (-40 to 185^oF)

Operating Humidity
0% to 95% RH, non-condensing

Storage Humidity
0% to 95% RH, non-condensing

Material
IP30-rated metal casing

Installation
DIN rail/wall/rack mountable

Certifications
CE, FCC, BSMI

Safety
UL60950-1

EMI
CISPR 22, FCC Part 15B Class A

EMS
EN 61000-4-2 ESD
EN 61000-4-3 RS
EN 61000-4-4 EFT
EN 61000-4-5
EN 61000-4-6 CS
EN 61000-4-8

IEC Standards
IEC 60068-2-27 Shock
IEC 60068-2-32 Freefall
IEC 60068-2-6 Vibration

Item Dimension (L"xW"xH")
14 x 9 x 3

Weight
5.51 lb
