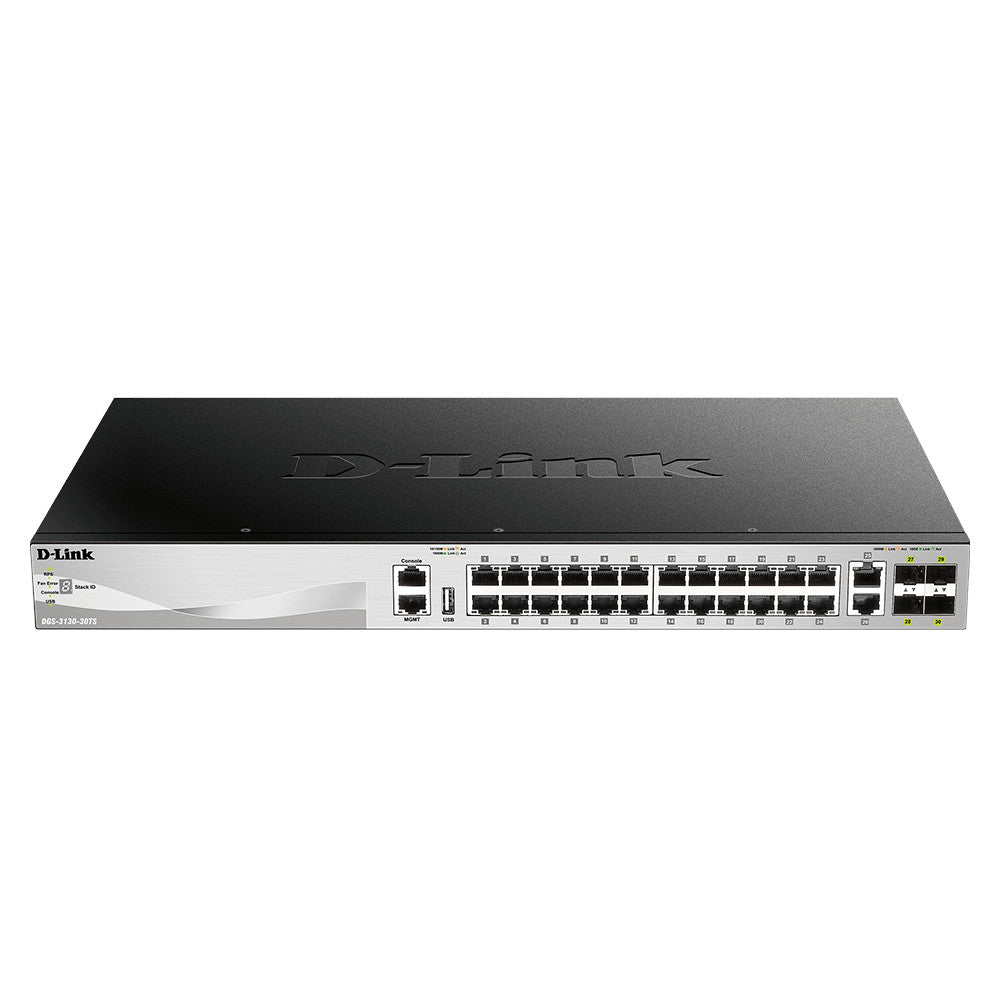

D-Link DGS-3130-30TS 30-Port Lite Layer 3 Stackable Managed Gigabit Switch (New)

The DGS-3130 Series is a range of Lite Layer 3 Stackable Managed Switches designed to help connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast and enhanced security features, making them an ideal Gigabit access layer solution. The DGS-3130-30TS/54TS provide 24 or 48 10/100/1000 Mbps Gigabit Ethernet ports. The DGS-3130-30PS/54PS provide 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports. The DGS-3130-30S/54S provide 24 or 48 SFP Gigabit Ethernet ports. Each 10/100/1000 Mbps port on the DGS-3130-30PS/54PS supports the IEEE 802.3af and IEEE 802.3at PoE standards. The default power budget for these models is 370 watts and can be expanded to 740 watts with the DPS-700 redundant power supply. The switches are also equipped with a USB 2.0 port, allowing the user to boot images and upload configuration files directly, as well as conveniently save syslog files to an USB 2.0 storage device.

• Enhanced Network Reliability
• Comprehensive Security Features
• Easy Access Control Policies
• Power over Ethernet Support
• Versatile Traffic Management

DGS-3130-30TS 30-Port Lite Layer 3 Stackable Managed Gigabit Switch

• Stackable Fully Managed Switch
• 24 x 10/100/1000 RJ45 ports
• 2 x 10GBASE-T RJ45 ports
• 4 x 10GbE SFP+ ports
• Embedded 6 kV surge protection on all Gigabit Ethernet ports
• L3 Features include VRRP, Static Route and RIPv1/v2/ng

Specifications

General
Hardware version is A
- Ports
24 x 10/100/1000BASE-T ports
2 x 10GBASE-T ports
4 x 10G SFP+ ports
- Optional Redundant Power Supply
DPS-500A
- Console Port
10/100/1000BASE-T RJ-45 port for out-of-band CLI management
- Management Port
10/100/1000BASE-T RJ-45 port for out-of-band IP management
Stacking Ports is equal to 4
- Stacking Cost^NOTE
1
- USB Ports
1 x USB 2.0 Type A port

Performance
- Switching Capacity
168 Gbps
- 64-Byte Packet Forwarding Rate
125 Mpps
- Packet Buffer Memory
2 MB

Physical and Environmental
- MTBF (Hours)
900,546 hours
- Acoustics
Max: 52.5 dB / Min: 33.5 dB
- Heat Dissipation
104.65 BTU/h
- Power Input
100 to 240 VAC, 50 to 60 Hz
- Max Power Consumption
30.76 W
- Ventilation
1 x Smart fan
- Operation Temperature
0^oC to 50^oC (32^oF to 122^oF)
- Storage Temperature
-40^oC to 70^oC (-40^oF to 158^oF)
- Operating Humidity
10% to 90% RH
- Storage Humidity
5% to 90% RH
- Emission (EMI)
FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI, CCC
- Safety
CB, cUL, BSMI, CCC

Software Features
Stackability
- Physical stacking:
Stacking Lite
Up to 9 units per stack or up to 12 stacking cost per stack^NOTE
- Virtual stacking:
D-Link Single IP Management (SIM)
Up to 32 units per virtual stack

L2 Features
- MAC Address Table: 16K (16,384) entries
- Flow Control:
802.3x Flow Control
HOL Blocking Prevention
- Jumbo Frames up to 9 Kbytes
- 802.3ad Link Aggregation:
Max. 32 groups per device, 8 Gigabit ports per group
- Spanning Tree Protocols:
802.1D STP
802.1w RSTP
802.1s MSTP
BPDU Filtering
Root Restriction
- Loopback Detection
- Port Mirroring:
One-to-One
Many-to-One
Flow-based
RSPAN Mirroring
- Ethernet Ring Protection Switching (ERPS):
Single ring topology

L2 Multicasting
- IGMP Snooping:
IGMP v1/v2/v3 Snooping
Supports 1024 IGMP groups
Port/Host-based IGMP Snooping Fast Leave
- Limited IP Multicast:
Up to 24 IGMP filtering profiles, 128 ranges per profile
- Double VLAN Q-in-Q:
Port-based Q-in-Q
Selective Q-in-Q
- MLD Snooping:
MLD v1/v2 Snooping
Support 1024 MLD Groups
Host-based MLD Snooping Fast Leave

VLAN
- VLAN Group:
Max. 4K VLAN groups
- GVRP:
Max. 4K dynamic VLAN groups
- 802.1Q Tagged VLAN
- Port-based VLAN
- 802.1v Protocol VLAN
- Voice VLAN
- MAC-based VLAN
- VLAN translation
- ISM VLAN
- Asymmetric VLAN
- Private VLAN
- VLAN Trunking
- Super VLAN

QoS (Quality of Service)
- 802.1p
- 8 queues per port
- Queue Handling:
Strict Priority
Weighted Round Robin (WRR)
Strict + WRR
- Supports following actions for flows:
Remark 802.1p Priority Tag
Remark TOS/DSCP Tag
Bandwidth Control
- CoS based on:
Switch port
VLAN ID
802.1p priority queues
MAC address
IPv4 address
DSCP
Protocol type
TCP/UDP port
User-defined packet content
IPv6 address
IPv6 traffic class
IPv6 flow label
- Bandwidth Control:
Port-based (ingress/egress, min. granularity 8 Kbps)
Flow-based (ingress/egress, min. granularity 8 Kbps)
- Three Color Marker:
CIR/PIR minimum granularity: 8 kbps
Two Rate Three Color Marker (trTCM), CBS/PBS
Single Rate Three Color Marker (srTCM), CBS/EBS

Access Control List (ACL)
- ACL based on:
802.1p priority
VLAN ID
MAC address
Ether Type
IPv4 address
DSCP
Protocol type
TCP/UDP port number
User-defined packet content
IPv6 address
IPv6 flow label
IPv6 traffic class
- Supports up to 2048 ingress access entries
- Supports up to 512 egress access entries
- Time-based ACL
- CPU Interface Filtering

Security Features
- SSH v2
- SSL v1/v2/v3
- Port Security:
Up to 64 MAC addresses per port
- IP-MAC Port Binding
- DHCP Snooping
- Supports up to 500 address binding entries
- Broadcast/Multicast/Unicast Storm Control
- Traffic segmentation
- D-Link Safeguard Engine
- NetBIOS/NetBEUI Filtering
- IPv6 ND Snooping
- DHCP Server Screening
- ARP Spoofing Prevention
- DoS Attack Prevention
- BPDU Attack Protection
- ARP Packet Inspection
- IP Packet Inspection

AAA
- 802.1X:
Port-based Access Control
Host-based Access Control
Identity-driven Policy (VLAN, ACL or QoS) Assignment
Authentication Database Failover
- Web-based Access Control (WAC):
Port-based Access Control
Host-based Access Control
Identity-driven Policy (VLAN, ACL or QoS) Assignment
Authentication Database Failover
- MAC-based Access Control (MAC):
Port-based Access Control
Host-based Access Control
Identity-driven Policy (VLAN, ACL or QoS) Assignment
Authentication Database Failover
- Guest VLAN
- Microsoft NAP:
Support 802.1X NAP
Support DHCP NAP
- RADIUS Accounting
- RADIUS and TACACS+ authentication for switch access
- Four levels of User Account Control

Green Features
- Compliant with RoHS
- Power saving by Link Status
- Power saving by cable length
- Time-based PoE
- IEEE 802.3az Energy-Efficient Ethernet (EEE)

OAM
- Cable diagnostics
- Hardware-based Dying Gasp
- 802.3ah Ethernet Link OAM

Management
- Web-based GUI
- Command Line Interface (CLI)
- Telnet Server
- Telnet Client
- TFTP Client
- DNS Client
- Secure FTP Server
- ZModem
- SNMP v1/v2c/v3
- SNMP Traps
- System Log
- sFlow
- Multiple images Multiple Configurations
- RMON v1:
Supports 1,2,3,9 groups
- RMON v2:
Supports ProbeConfig group
- LLDP
- BootP/DHCP Client
- DHCP Auto-Configuration
- DHCP Relay
- DHCP Client Option 12
- DHCP Relay Option 18, 37, 82
- Flash File System
- PPPoE Circuit-ID Tag Insertion CPU monitoring
- Debug command
- SNTP
- NTP
- Password recovery
- Password encryption
- Trusted Host
- ICMPv6
- DHCP server

L3 Features
- Max. 16 IP interfaces
- ARP Proxy
- IPv6 Neighbour Discovery (ND)
- VRRP

L3 Routing
- Static Route:
Max. 512 IPv4 entries
Max. 512 IPv6 entries
- RIPv1/v2/ng

L3 Multicasting
- IGMP Filtering:
Port-based filtering
VLAN-based filtering

MIB
- RFC 1213 MIB II
- RFC 4188 Bridge MIB
- RFC 1157, 2571-2576 SNMP MIB
- RFC 1907 SNMPv2 MIB
- RFC 1757, 2819 RMON MIB
- RFC 2021 RMONv2 MIB
- RFC 1398, 1643, 1650, 2358, 2665 Ether-like MIB
- RFC 2674 802.1p MIB RFC 2233, 2863 IF MIB
- RFC 2618 RADIUS Authentication Client MIB
- RFC 2620 RADIUS Accounting Client MIB
- RFC 2925 PING TRACEROUTE MIB
- RFC 2674, 4363 802.1p MIB
- RFC 1065, 1066, 1155, 1156, 2578 MIB Structure
- RFC 1215 MIB Traps Convention
- RFC 1212 Concise MIB Definitions
- RFC 1215 MIB Traps Convention
- RFC 1157, 2571-2576 SNMP MIB
- RFC 4022 MIB for TCP
- RFC 4113 MIB for UDP
- RFC 4293 IPv6 SNMP Mgmt Interface MIB
- RFC 2737 Entity MIB (version 2)

RFC Standard Compliance
- RFC 768 UDP
- RFC 791 IP
- RFC 792, 2463, 4443 ICMP
- RFC 793 TCP
- RFC 826 ARP
- RFC 3513, 4291, IPv6 Addressing Architecture
- RFC 2893, 4213 IPv4/IPv6 dual stack function
- RFC 2463, 4443 ICMPv6
- RFC 2462, 4862 IPv6 Stateless Address Auto Configuration
- RFC 2464 IPv6 Ethernet and definition
- RFC 1981 Path MTU Discovery for IPv6
- RFC 2460 IPv6
- RFC 2461, 4861 Neighbor Discovery for IPv6
- RFC 783 TFTP
- RFC 2068 HTTP
- RFC 1492 TACACS
- RFC 2866 RADIUS Accounting
- RFC 2474, 3260 DiffServ
- RFC 1321, 2284, 2865, 3580, 3748 Extensible Authentication Protocol (EAP)
- RFC 2571, 2572, 2573, 2574, SNMP
- RFC 854 Telnet
- RFC 951, 1542 BootP

Ordering Information
24 10/100/1000BASE-T ports, 2 10GBASE-T ports, and 4 10G SFP+ port Lite L3 Stackable Managed Switch

Optional 10GbE SFP+ Transceivers
DEM-431XT 10GBASE-SR Multimode SFP+ Optical Transceiver, 0 to 70C
DEM-432XT 10GBASE-LR Single-mode SFP+ Optical Transceiver, 0 to 70C

Optional Gigabit SFP Transceivers
DEM-310GT 1000BASE-LX Single-mode SFP Optical Transceiver, 0 to 70C
DEM-311GT 1000BASE-SX Multimode SFP Optical Transceiver, 0 to 70C
DGS-712 1000BASE-T to SFP Transceiver

Optional 10GbE SFP+ Direct Attach Copper Cables
DEM-CB100S 10GbE SFP+ 1m Direct Attach Cable
DEM-CB300S 10GbE SFP+ 3m Direct Attach Cable

Optional Redundant Power Supplies
DPS-500A AC Redundant Power Supply
DPS-700 AC Redundant Power Supply for PoE Models

NOTE
When stacking the DGS-3130-30TS/30S/30PS models, the stacking cost is 1 per unit. The maximum units per stack is 9. When stacking different models in the same stack, switches can be stacked up to a maximum of 12 stacking cost per stack. For example: 2 x DGS-3130-30TS (2 stacking cost) + 2 x DGS-3130-30S (2 stacking cost) + 4 x DGS-3130-54TS (8 stacking cost) consumes a total stacking cost of 12 (2+2+8).

Item Dimension (L"xW"xH")
21 x 16 x 4

Weight
10.00lb
