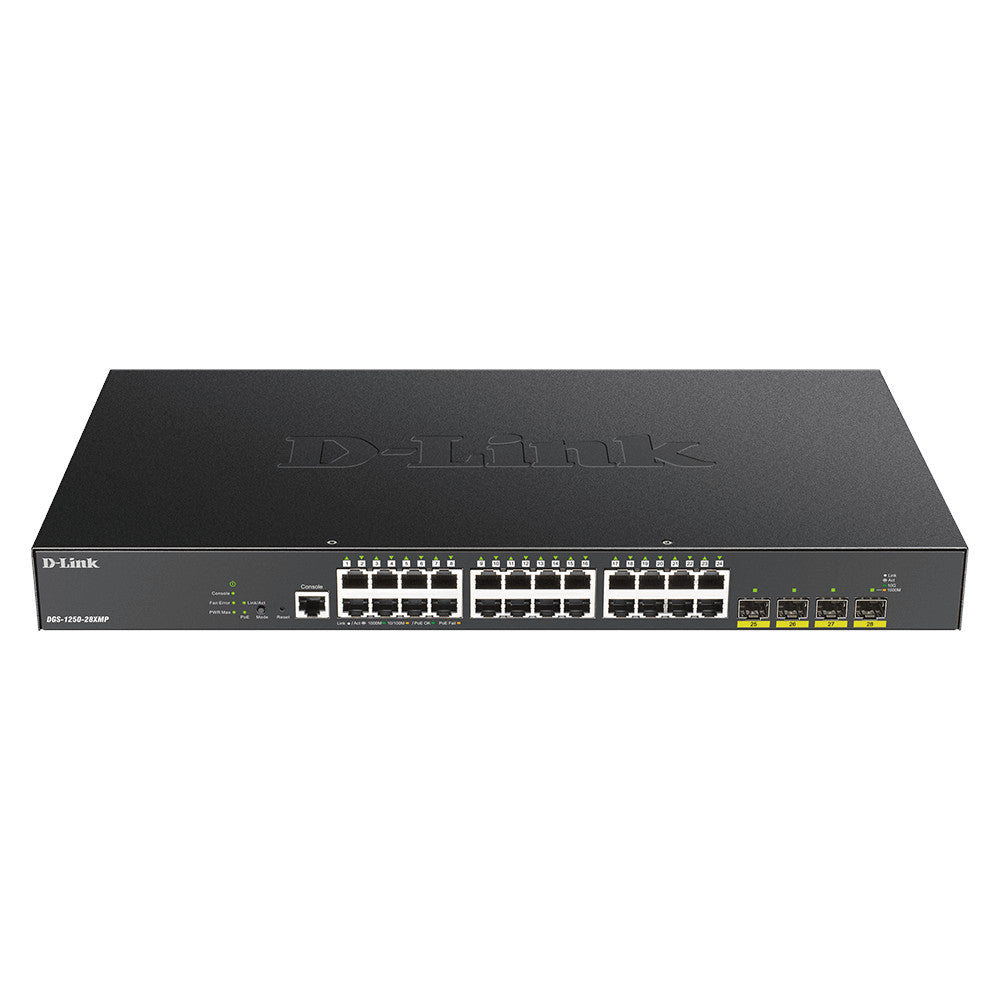

D-Link DGS-1250-28XMP-6KV 28-Port Smart Managed Gigabit PoE Switch with 10-Gigabit Uplinks (New)

Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.

Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation. Full Command Line Interface (CLI) functionality enables remote configuration without need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.

Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

Specifications

Switch Capacity
128 Gbps

Max. Packet Forwarding Rate
95.24 Mpps

Maximum Heat Dissipation
PoE ON: 1551.891 BTU/hr (100 V)1471.415 BTU/hr (240 V)PoE Off: 131.626 BTU/hr (100 V)133.331 BTU/hr (240 V)

Operation Temperature
-5 50^oC

Storage Temperature
-20-70^oC

Operation Humidity
0% - 95% RH

Storage Humidity
0% - 95% RH

Operating Altitude
1500 meters

Maximum Power Consumption
PoE ON: 455.1 W/100 V431.5 W/240 VPoE Off: 38.6 W/100 V39.1 W/240 V

MTBF
463,430.16 hours

Power Input
100-240 VAC

CPU Speed
800MHz

DRAM Size
DDR3 2G

Flash Memory Size
64MB

Packet Buffer Size
12MBits

FAN
Yes

PoE Budget
370W

Physical Stacking
No

10G SFP + ports
4

10/100/1000 BASE-T PoE
24

1000Base-T PoE Interface
24

10G SFP + Interface
4

Auto MDI/MDIX
Yes

Console Port
Yes

RJ-45 Management Port
No

Alarm Port
No

CompactFlash (CF) Card Slot
No

Secure Digital (SD) Card Slot
No

USB Port
No

Number of Module Slots
No

Item Dimension (L"xW"xH")
23 x 16 x 4

Weight
11 lbs
