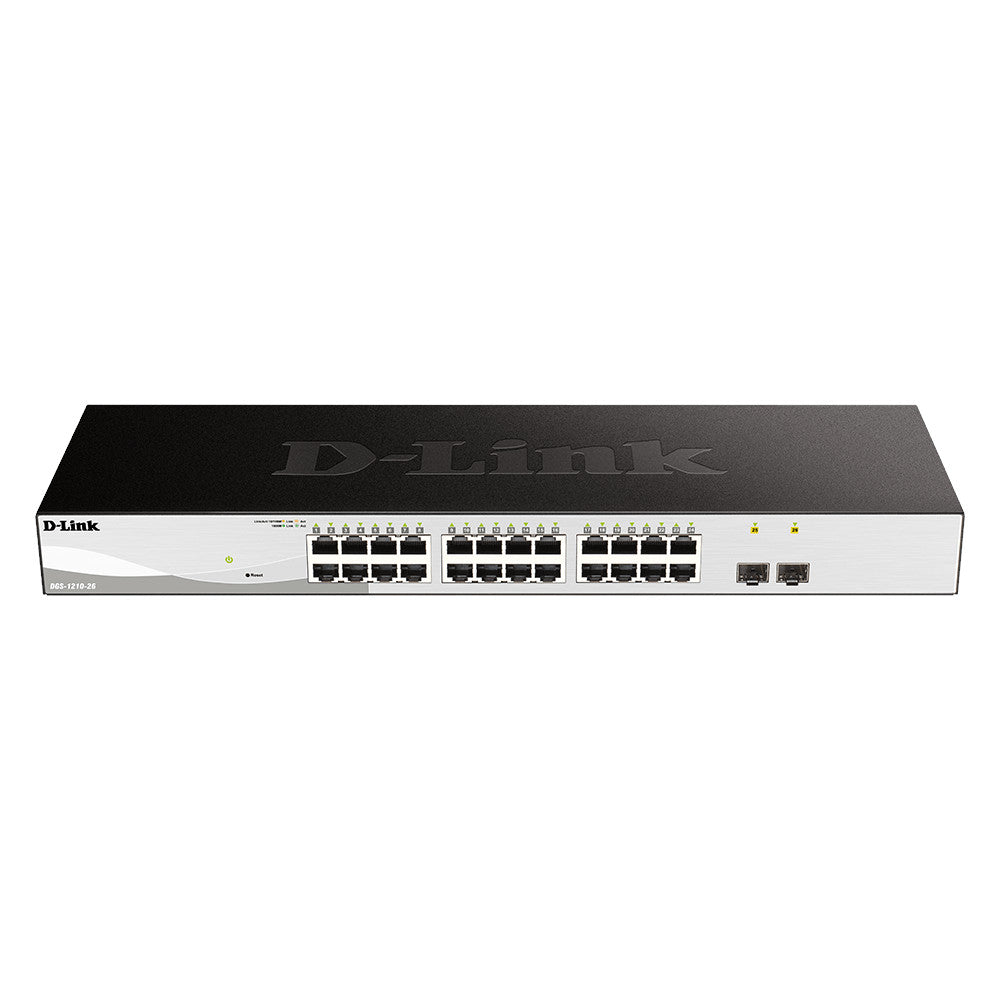

D-Link DGS-1210-26 26-Port Gigabit Smart Managed Switch (New)

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

Specifications

Hardware Version
Rev. F

10/100/1000 Ports
24

COMBO Ports (10/100/1000 or 100/1000 SFP)
-

100/1000 SFP Ports
2

Port Standards and Functions
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3x Flow Control
IEEE 802.3af/at compliance (for PoE ports on PoE models)

Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)

Duplex Mode
Full/half-duplex for 10/100 Mbps
Full-duplex for 1000 Mbps

Media Interface Exchange
Auto MDI/MDIX adjustment for all twisted-pair ports

Switching Capacity
52 Gbps

Transmission Method
Store-and-forward

MAC Address Table
8K entries

Static MAC Addresses
256 entries

Max. 64 Byte Packet Fwd Rate
38.7 Mpps

Packet Buffer Memory
4.1 Mbits

CPU Memory
DDR3 128 MB

Flash Memory
32 MB

PoE Standards
N/A

PoE Capable Ports
N/A

PoE Power Budget
N/A

Power (per device)
Yes

Console (per device)
Yes

Link/Activity/Speed (per port)
Yes

PWR Max
--

Fan Error
--

Power Input
100 to 240 VAC, 50/60 Hz Internal Universal Power Supply

Max. Power Consumption (PoE disabled)
N/A

Max. Power Consumption (PoE disabled)
15.22 W / 100 V
15.11 W / 240 V

Standby Power Consumption
5.01 W / 100 V
5.06 W / 240 V

Acoustics
0 dB(A)

Heat Dissipation
51.93 BTU/hr (100V)
51.57 BTU/hr (240V)

Fans
No

Operating Temperature
23^oF to 122^oF (-5^oC to 50^oC)

Storage Temperature
-4^oF to 158^oF (-20^oC to 70^oC)

Operating Humidity
0% to 95% relative humidity

Storage Humidity
0% to 95% relative humidity

MTBF
1,082,534 hours

EMI Certifications
CE Class A, VCCI Class A, FCC Class A, BSMI, CCC

Safety Certifications
CB, UL, BSMI, CCC

Item Dimension (L"xW"xH")
20 x 10 x 3

Weight
6.40lb
