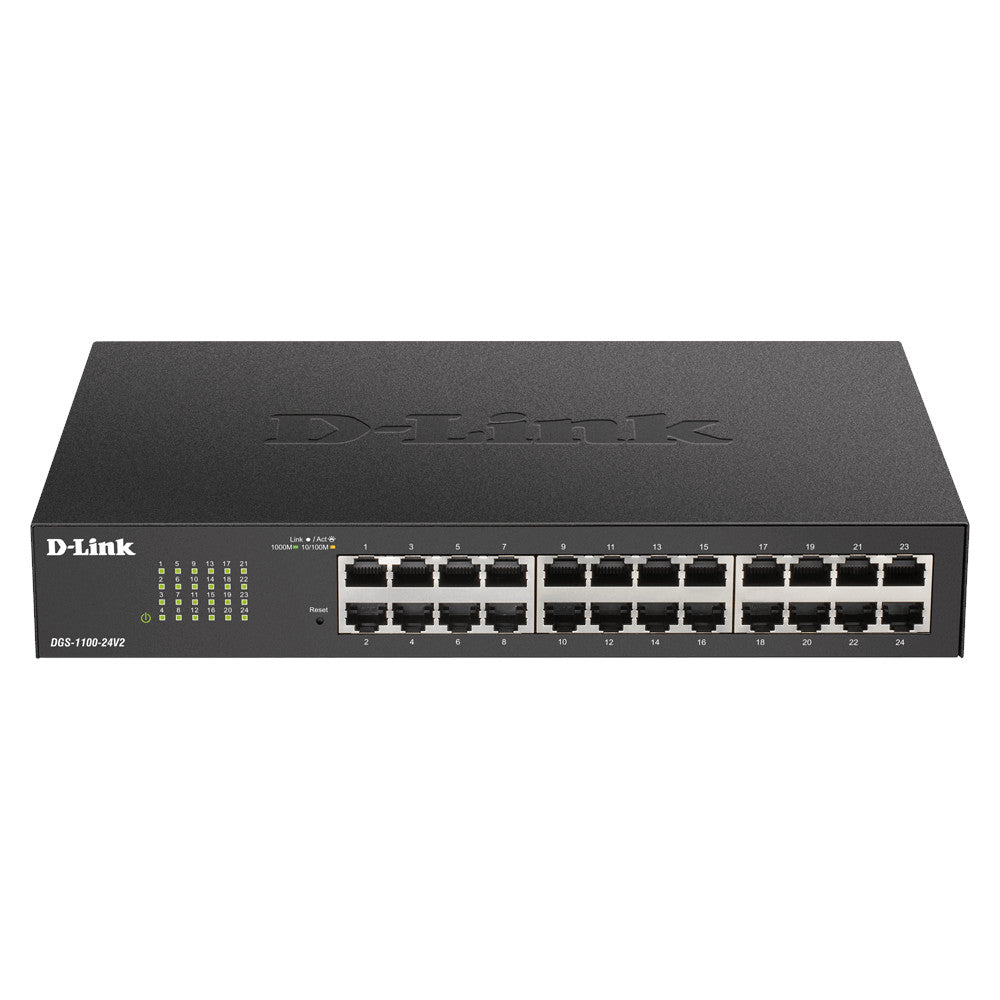

D-Link DGS-1100-24V2 24-Port Gigabit Smart Managed Switch (New)

DGS-1100-24V2 24-Port Gigabit Smart Managed Switch

• 24 x 10/100/1000BASE-T ports
• Fanless design for silent operation
• Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs
• Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery
• Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security
• IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic
• Innovative energy saving features are good for your budget, as well as the environment
• Get up and going quickly with streamlined first-time setup and ongoing management

Specifications

1000Base-T Interface
24
Auto MDI/MDIX
Yes
10/100/1000BASE-T ports
24
Switch Capacity
48 Gbps
Max. Packet Forwarding Rate
35.71 Mpps
Power Input
AC: 100-240V
Comply with RoHS 6
Yes

Energy Efficiency Ethernet (EEE)
Yes
Power Saving By Link Status
Yes
Power Saving By LED Shut-Off
Yes
Power Saving By Port Shut-Off
Yes
Power Saving By System Hibernation
Yes

MAC Address Table Size
8K
802.3x Flow Control
Yes
Head-of-line (HOL) Blocking Prevention
Yes
802.1D Spanning Tree (STP)
Yes
802.1w Rapid Spanning Tree (RSTP)
Yes

802.1AX Link Aggregation
Yes
802.3ad Link Aggregation
Yes
Link Aggregation Group Per Device
12
Max Port Per Link Aggregation Group
8

Jumbo Frame
9216 bytes
Loopback Detection (LBD)
Yes
Port Mirroring
Yes
IGMP Snooping
Yes
Max IGMP Snooping Groups
64

802.1Q VLAN
Yes
VLAN Groups
128
Port-based VLAN
Yes
Voice VLAN
Yes
Auto Surveillance VLAN
Yes

Asymmetric VLAN
Yes
Number of Queue
4
Class of Service (CoS)
Yes
Two Rate Three Color Marker (trTCM)
Yes
Rate Limiting
Yes
Queue Handling
Yes
Strict Priority Queue (SPQ)
Yes

Weighted Round Robin (WRR)
Yes
Port-based Bandwidth Control
Yes
SSL
Yes
Broadcast/Multicast/Unicast Storm Control
Yes

Traffic Segmentation
Yes
D-Link Safeguard Engine
Yes
DoS Attack Prevention
Yes
Cable Diagnostics
Yes

Simple Network Time Protocol (SNTP)
Yes

Web-based GUI
Yes

SNMP
Yes

SNMP Trap
Yes

TFTP Client
Yes

System Log
Yes

LLDP
Yes

D-Link Discover Protocol (DDP)
Yes (v0.25)

DHCP/BootP Client
Yes

Dual Images
Yes

Ping
Yes

D-Link Network Assistant
Yes

Smart Wizard
Yes

Surge/Lightning Protection (AC Power Inet)
2kV

Surge/Lightning Protection (All Ethernet Ports)
1Kv

Store-and-Forwarding
Yes

Operation Temperature
-5-50^oC

Storage Temperature
-40-70^oC

Operation Humidity
0%-95% RH

Storage Humidity
0% - 95% RH

Operating Altitude
2000 m

Maximum Power Consumption
15.9 W

Standby Power Consumption
4.5 Watts

Maximum Heat Dissipation
54.3 BTU/hr

Acoustic
0 dB(A)

MTBF
424,762 hours

CPU Speed
125MHz

DRAM Size
128KBytes

Flash Memory Size
16MBytes

Packet Buffer Size
4.1 MBytes

FAN
Fanless
Item Dimension (L"xW"xH")
15 x 15 x 5

Weight
9.00lb
