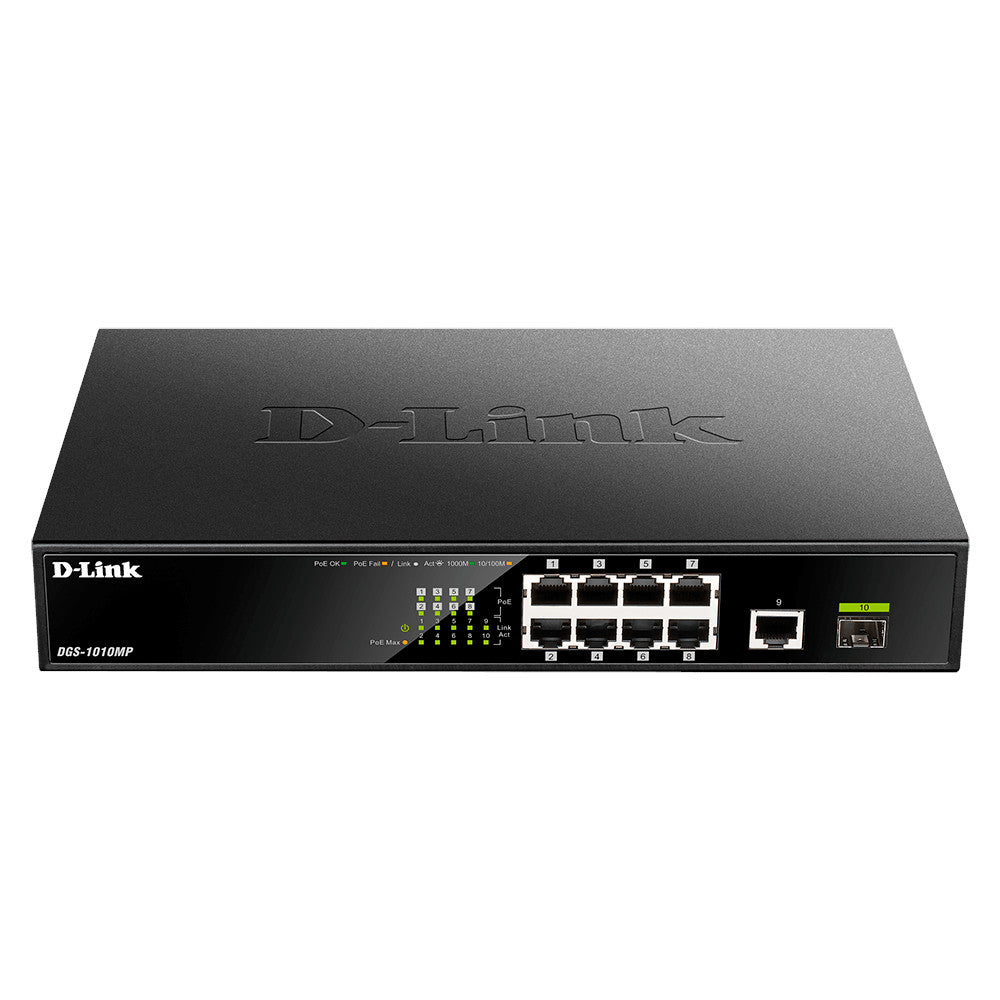

D-Link DGS-1010MP 10-Port Gigabit PoE Switch (New)

The D-Link DGS-1010MP 10-Port Gigabit PoE Switch is an ideal solution for small offices and enterprise environments looking to expand the network with a set of Power over Ethernet devices such as wireless access points, IP cameras, and IP phones. Built with small business and enterprise users in mind, the DGS-1010MP is a high-speed, flexible switch that features a fanless, quiet design so it can be conveniently placed anywhere in a working environment.

Power over Ethernet
The DGS-1010MP features eight 10/100/1000BASE-T ports that support the IEEE 802.3at Power over Ethernet (PoE) standard. Each of the eight PoE ports can supply up to 30 W, with a total combined PoE budget of 125 W, allowing users to power up to four IEEE 802.3at-compliant devices without requiring an additional power supply. This allows devices to be installed in locations without any power outlets, saving on installation costs and reducing the time it takes to install new devices.

Superior Performance
The DGS-1010MP is fully plug and play, meaning installation is quick and easy and requires no additional configuration. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for optimal compatibility and performance. With store-and-forward switching, the DGS-1010MP also maximizes network performance while minimizing packet loss during data transmission. In addition, the DGS-1010MP features one Gigabit Ethernet and one SFP uplink port for high-speed connections to remote storage or for long distance fiber connections to an uplink network. Combining the convenience of PoE, superior performance, and ease of use, the DGS-1010MP is the ideal choice for flexibly expanding your network while remaining cost efficient.

Specifications

General
Hardware Version
A1

Size
11-inch desktop/rackmount size, 1U height

Number of Ports
8 x 10/100/1000 Mbps PoE ports
1 x 10/100/1000 Mbps Ethernet uplink port
1 x 100/1000 Mbps SFP uplink port

Port Standards and Functions
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit fiber
IEEE 802.3at Power over Ethernet
IEEE 802.3az Energy-Efficient Ethernet
IEEE 802.3x Flow Control
ANSI/IEEE 802.3 NWay auto-negotiation

Switching Capacity
20 Gbps

Media Interface Exchange
Auto MDI/MDI-X

Transmission Method
Store-and-forward

MAC Address Table
4K entries per device

Packet Buffer Memory
192 KB per device

Packet Filtering / Forwarding Rates
Ethernet
14,880 pps per port
Fast Ethernet
148,800 pps per port
Gigabit Ethernet
1,488,000 pps per port

Data Transfer Rates
Ethernet
10 Mbps (half-duplex)
20 Mbps (full-duplex)
Fast Ethernet
100 Mbps (half-duplex)
200 Mbps (full-duplex)
Gigabit Ethernet
2000 Mbps (full-duplex)

Network Cables
10BASE-T:
UTP Cat 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP Cat 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
1000BASE-T
UTP Cat 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Physical
LED Indicators
Per port: activity / link and speed
Per port: power / status
Per device: PoE Max

Power Input
100 to 240 V AC, 50/60 Hz

Maximum PoE Budget
125 W
PoE up to 30 W per port

Power Consumption
7.32 W (PoE off)
133.8 W (PoE on)

Temperature
Operating: 0 to 40 ^oC (32 to 104 ^oF)
Storage: -10 to 70 ^oC (14 to 158 ^oF)

Humidity
Operating: 0% to 95% RH non-condensing
Storage: 0% to 95% RH non-condensing

EMI
CE Class A
FCC Class A
VCCI Class A
CCC Class A
FCC Class A

Safety
cUL
CB
CCC
LVD

Item Dimension (L"xW"xH")
16 x 11 x 5

Weight
7 lbs
