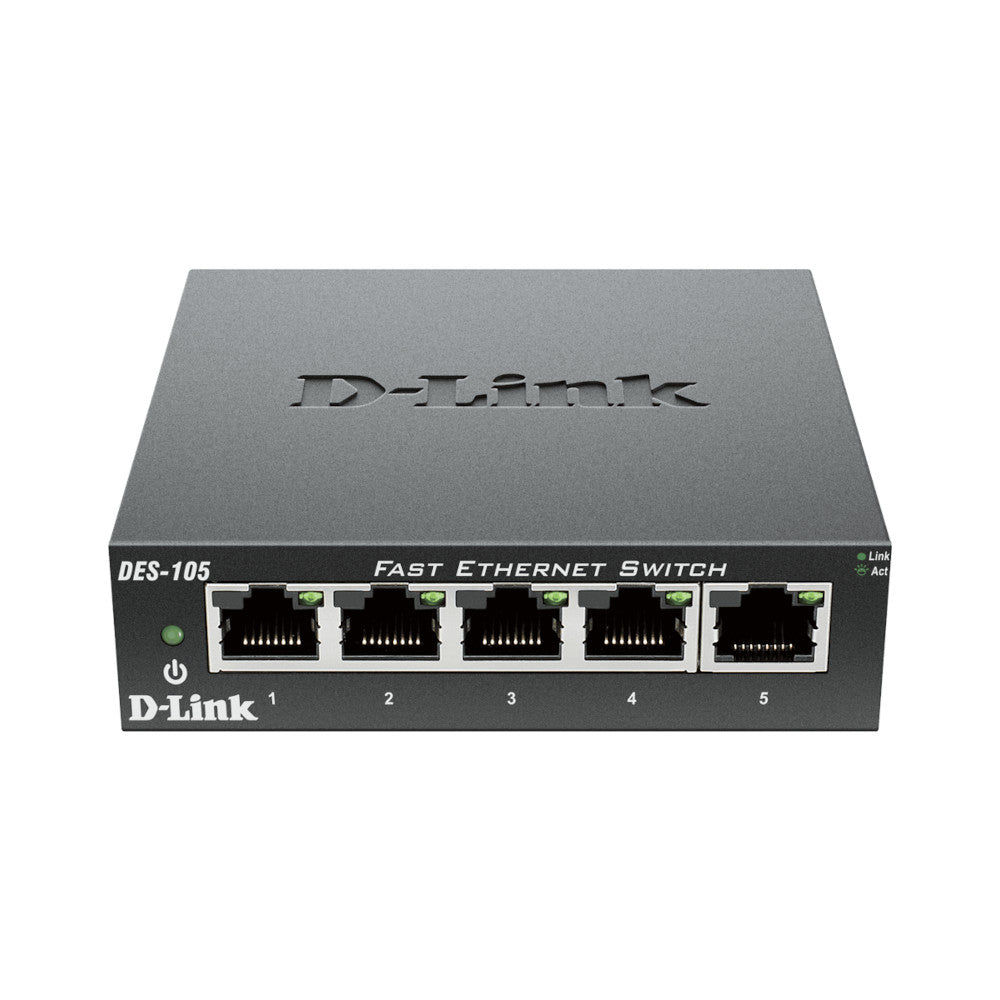

D-Link DES-105 5-Port 10/100 Unmanaged Metal Desktop Switch (New)

The DES-105 is a 5-Port, Fast Ethernet switch for the SMB and Enterprise needing a flexible and easy to install unmanaged solution. The DES-105 is housed in a metal chassis providing a durable alternative to plastic. With no fan to create noise, the DES-105 runs discretely in the background allowing for deployment into locations where quiet operation is a necessity. The DES-105 is compact in size and wall mountable, ensuring hassle-free installation in virtually any location. With a non-blocking / wire-speed architecture, support for 802.3x flow control, auto-detection for speed, duplex, and cable type, the DES-105 is the perfect blend of quality, simplicity, and affordability.

Specifications

Key Features
MAC Address Table Size: 1K entries
Status Indicators: Link activity
Enclosure Color: Black
Data Transfer Rate: 10/100 Mbps
Ports Qty: 5 Ports
Device Type: Layer 2 Switch
Power Device: N/A
Auxiliary Network Ports: N/A
Communication Mode: N/A
Compliant Standards: IEEE 802.3, IEEE 802.3u and IEEE 802.3x
Data Link Protocol: Ethernet, Fast Ethernet, Flow Control

Detail Specifications
MAC Address Table Size - 1K
Switch Fabric - 1Gbps Forwarding Capacity
Transmission Method - Store-and-forward
Diagnostic LEDs
- Per Unit Power
- Per Port Activity/Link
Packet Buffer Memory - On Chip 64Kbyte Buffer Memory Per Device
Forwarding Rate - 10Mbps- 14,880pps/100Mbps- 148,810pps
Address Aging Timer - Automatic Update
Max Power Consumption - 1.2 Watts (Max)
Interface Options
- RJ-45, 10BASE-T, 100BASE-TX Universal UTP Cable Recognition for Straight-Through or Crossover Cables (MDI/MDI-X)
Network Protocols and Standards
IEEE, 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control
Emissions - FCC Class B, CE Class B, VCCI Class B
Power Supply - DC 7.5V / 1A External
Safety - CSA International
Dimensions (W x H x D) - 4.9 x 2.9 x 1.2 in (124 x 73 x 30 mm)
