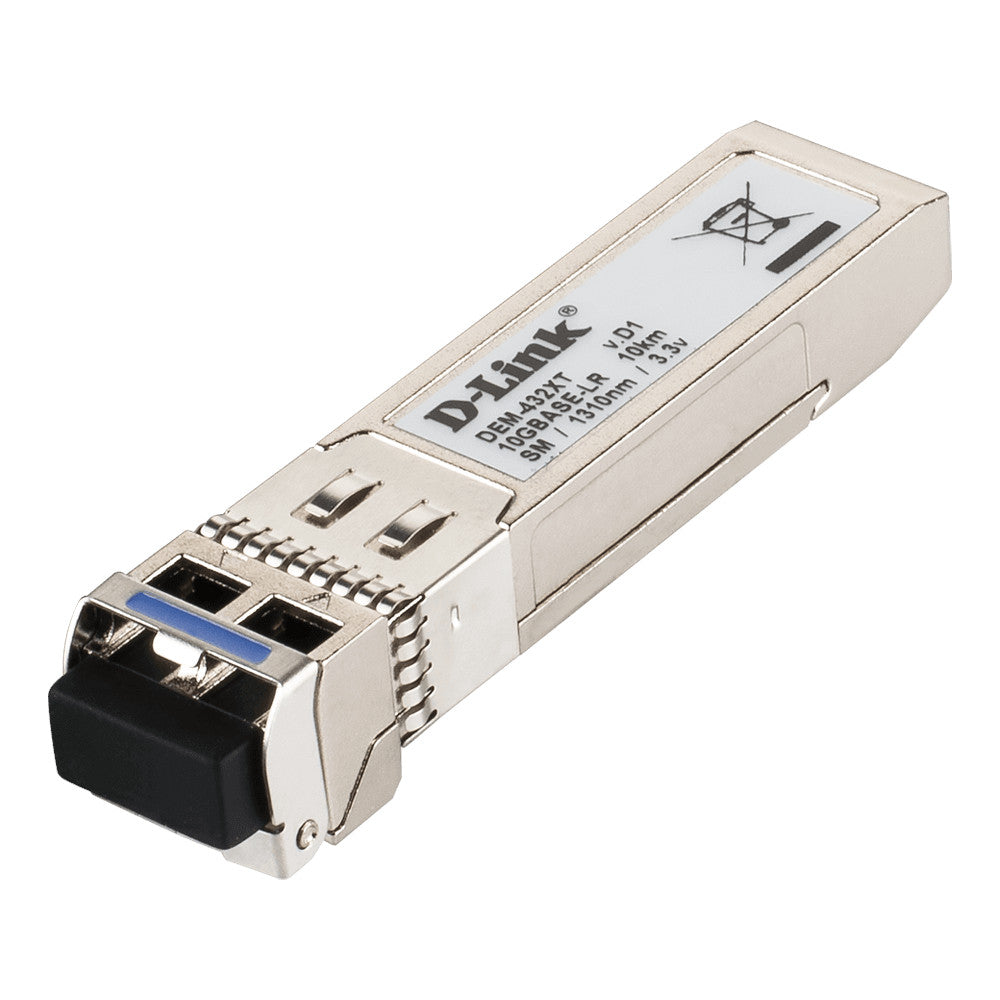

D-Link DEM-432XT 10GBASE-LR SFP+ 10KM Transceiver (New)

DEM-432XT 10GBASE-LR SFP+ 10KM Transceiver

• Cost-effective solution for 10G fiber connection
• Small form factor, allowing higher port densities for 10G connections
• Lower power dissipation
• Hot-pluggable
• Compliant with Ethernet 802.3ae
• Compliant with fiber MSA (Multiple Source Agreement)

D-Link’s 10G SFP+ Module series are hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

Enhanced Small Form-factor Pluggable Format

The transceivers use the Enhanced Small Formfactor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.

Hot Pluggable

All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing any problems. This permits modules to be added or removed without interrupting the network.

10G Ethernet speeds

The transceivers all support 10G Ethernet, which results in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and enables the switch to handle faster and higher data transmissions, making it very suitable for business needs.

Specifications

Features
Hot Pluggable
MSA Compliant
RoHS Compliant

Standards
Compliance with IEEE802.3ae, 10GBASE-LR
Form Factor Type: SFP+
Fibre Channel FC-PI standard: 1200-SM-LL-L
Fiber Media support: Single-Mode
Distance Capacity: 10Km

Speed
10Gbps

Interface
Duplex LC Connector
Single-direction
Wavelength: 1310nm
Output (TX) Optical Power
MAX.: +0.5 dBm
MIN.: -8.5 dBm
Input (RX) Optical Power
MAX.: +0.5dBm
MIN.: -12.6 dBm
Sensitivity: -12.6 dBm
Cable Type: single-mode 9/125um fiber

Operating
Power: 3.3V
Max Input Current at 3.3V: 300mA
Power Budget
MIN: 4.1dB
MAX: 13.1dB
Heat Generated 3.6KJ/H

Reliability
MTBF (Hours) 4,650,000

Physical and Environment
Operation Temperature: 0^o-70^oC
Storage Temperature: -40^o-85^oC
Operating Humidity: 5% - 85%
Storage Humidity: 5% - 95%
Bail latch color: Blue

Emission (EMI) and Safety Certifications
EMI: CE, FCC, VCCI
Safety: UL, TUV, CDRH

Item Dimension (L"xW"xH")
6 x 3 x 2

Weight
1.00lb
