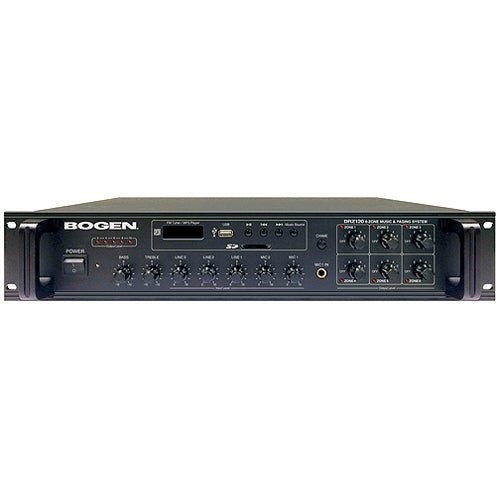

Bogen DRZ120 6 Zone Music and Paging System

The DRZ120 6-Zone Music & Paging System from Bogen Communications is a 120-watt amplifier with a digital FM tuner well suited for commercial retail spaces bars and restaurants. Designed for 70-volt audio systems the DRZ120 is the ideal front-end to any commercial audio paging system supplying background music to six separate zones with its FM tuner. There are also microphone and line inputs for connecting additional equipment.On-board tone controls feature bass and treble controls while MP3 files can be loaded and played from the on-board USB or SD card slots on the front panel. The front panel mic input can be set for Vox-activated override/muting of the other audio inputs. Additionally there is a push-button activated Chime feature that produces a short melodic series of four ascending bell-like alert tones which are played across all outputs. On-board tone controls feature bass and treble controls, while MP3 files can be loaded and played from the on-board USB or SD card slots on the front panel. The front panel mic input can be set for Vox-activated override/muting of the other audio inputs. Additionally, there is a push-button activated Chime feature that produces a short, melodic series of four ascending bell-like alert tones which are played across all outputs. The DRZ120 ships with an infrared remote controller for the FM tuner and MP3 player.

Key Features:

• Self-contained, 6-zone music and paging system with Tuner and MIC, LINE, and AUX inputs
• 35-watt audio outputFor use with 4-ohm, 25- or 70-volt speaker systems
• Select 1-4 zones for music or paging
• 3 external audio inputs: MIC, LINE, and AUX
• For use with 4-16 Ohms or 70-Volt speaker systems.
• Enable from 1-6 zones for music or paging
• 7 Total Audio Inputs: Mic1-4, Line1-3
• Mic1 input uses a front 1/4” TRS connector for a balanced Lo-Z microphone
• Mic1 Vox-activated muting of all other audio inputs governed via a Mute Control
• RCA inputs for Line1-3
• Built-in digital FM Tuner, with PLL synthesizer to provide accurate frequency selection
• Auto station search and manual tuning
• Back-lit tuner display, LCD
• FM 75-Ohm coaxial antenna connector
• Over 800 FM station presets
• Bass and Treble controls
• Infrared Remote Controller for FM tuner and MP3 player control
• Volume control
• Tuner/MP3 select button
• Preset and scan channel selection
• USB/SD media select
• MP3 play/pause/forward/ backward/repeat options
• EQ mode selection (none, Classic, Jazz, Rock, Bass & Pop)
• Chime button with priority output
• 5-segment LED output level meter
• Aux post-mix LINE output
• Power-on LED indicator
• Rack-mountable with integral brackets
